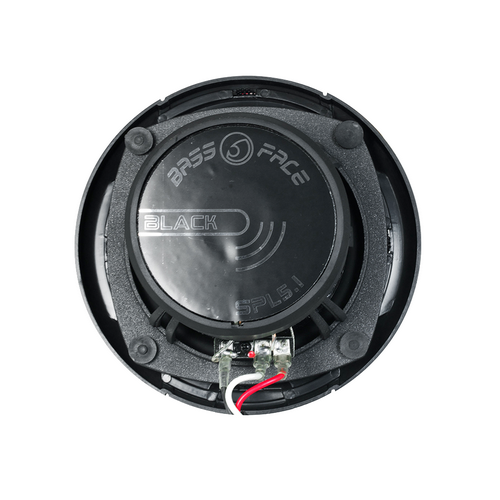

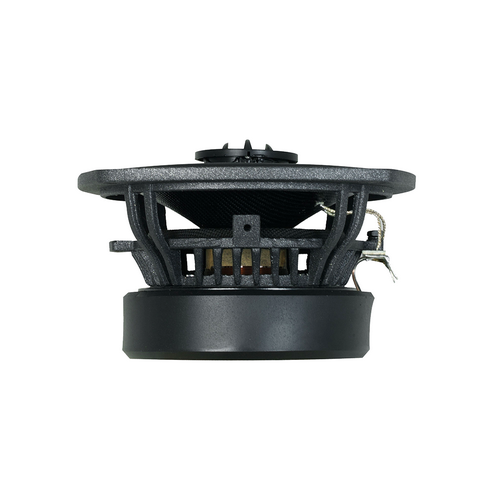

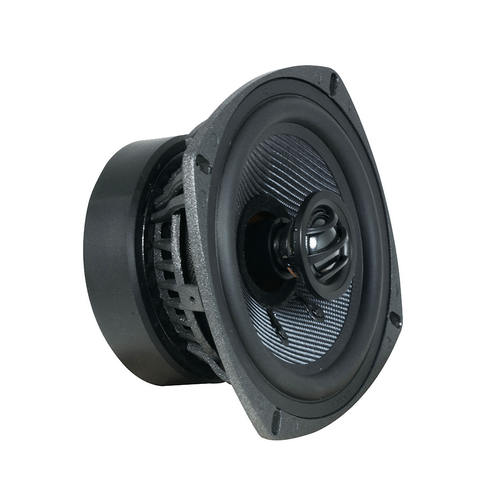

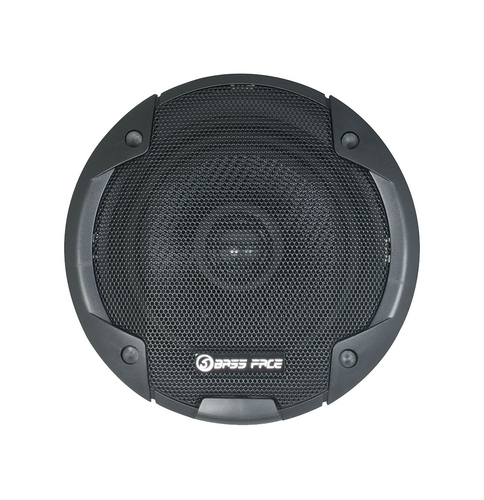

Bass Face BLACKSPL5.1
Description
Product description
Our BLACK series speakers are bursting with audiophile build specs. Large KSV voice coils and oversize magnets increases magnetic force. Cast Aluminium baskets with extensive cooling for the VC provides a significant reduction in power compression, this means they play louder for longer with more power. Power compression is often overlooked at the price of significantly reduced output when running at high power, due to increased resistance from head build up in the motor assembly. This also affords the BLACK series speakers a much more open and natural sound. We made the suspension as light weight as possible to retain amazing cone control. This gives the midrange units high sensitivity enabling them to be highly effective across a broad spectrum of power amplifiers. The tweeters use Neodymium magnets and ferrofluid cooling. This gives them a slimmer profile without loss of control. The domes are 100% pure silk with translucent finish which looks almost as good as it sounds! These are designed from the bottom up to impress even the most discerning ear. We are confident that these will surpass your expectations for even high end audio products.
Tweeter Data
| Magnet Type | Neodymium |
| System Maximum Power (Watts) (Using Pair Of Tweeters Not Necessarily Included) | 120 |
| System RMS (Watts) (Using Pair Of Tweeters Not Necessarily Included) | 60 |
| Frequency Response (Hz) | 3500-23000 |
| Impedance (Ohm) | 4 |
Speaker Data
| Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) | 180 |
| Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) | 90 |
| Overall Diameter With Lugs (mm) | 150 |
| Overall Diameter With Grilles (mm) | 160 |
| Overall Diameter (mm) | 150 |
| Magnet Diameter (mm) (Including Magnet Protector Where Applicable) | 95 |
| Installation Cutout Diameter (mm) | 116 |
| Grille Depth (mm) | 25 |
| Overall Depth (mm) | 83 |
| Mounting Depth (mm) | 64 |
| Front Protrusion From Mounting Plane (mm) | 19 |
| System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) | 40-23000 |
| Impedance (Ohm) (Nominal) | 4 |
| Sensitivity (db/1Wm) | 97 |
| Recommended Cable | PSC16.2 |
System Power
| Full Speaker System Recommended Peak Power Input (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) | 480 |
| Full Speaker System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) | 240 |
Technical Highlights
- Cast Aluminium Basket Reduces Mechanical Distortion
- Oversize 1.2” Voice Coil For High Power Handling

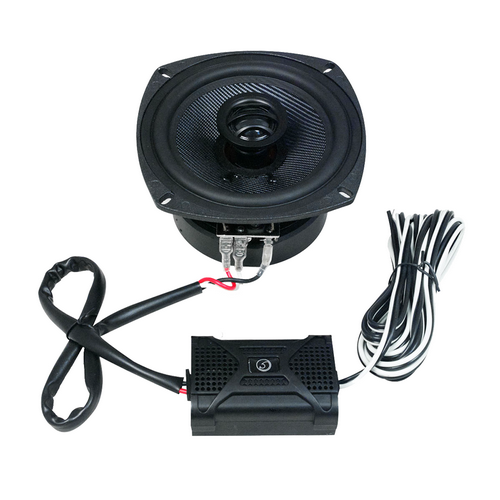

- Full HP/LP In-Line Crossover Enhances Sonic Performance
- Extra VC Cooling Vents Decrease Power Compression
- Woven Black Fibre Cone Provides Superior Dynamics
- Single Roll Non Fatiguing Rubber Surround
- Large Clear Silk Dome Tweeter
- High Magnetic Flux Motor Design
- Sibilance Minimising Tweeter Protection
- Engineered For SQ OEM Location Install Use
- Highly Accurate Response Characteristics
