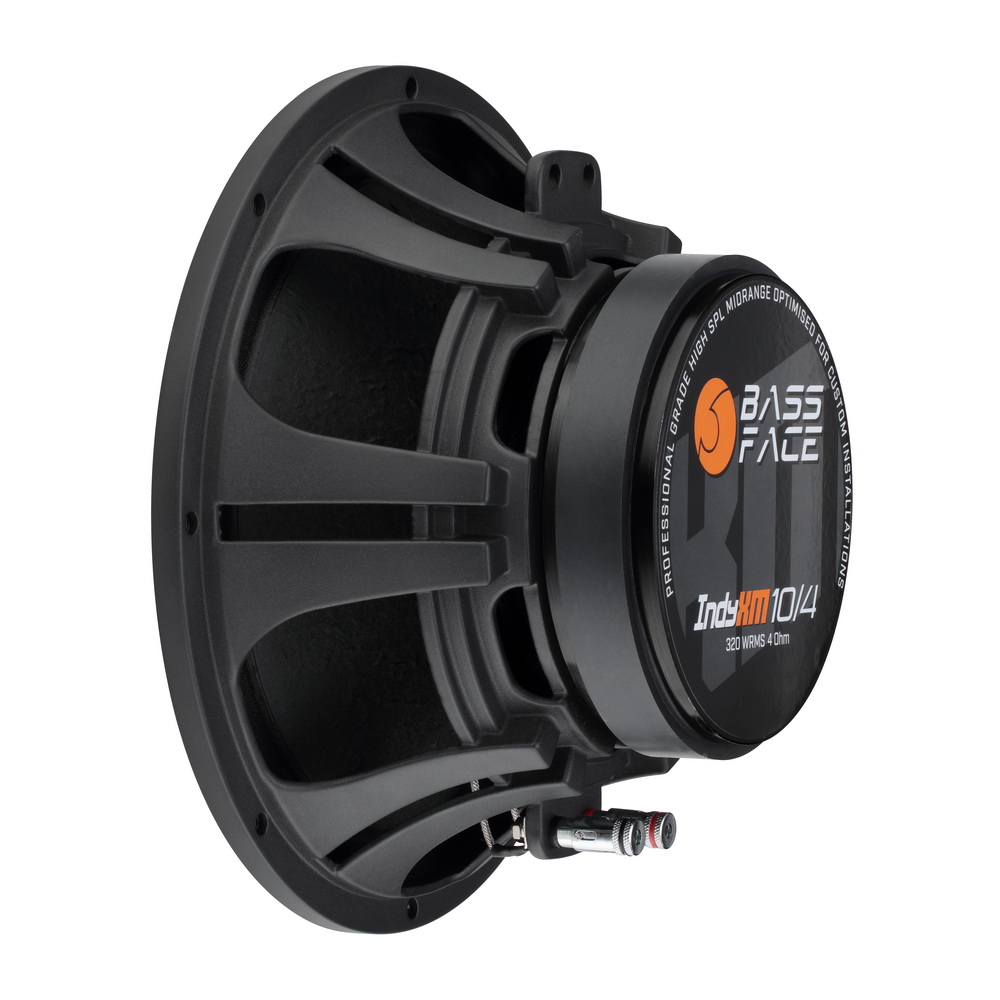

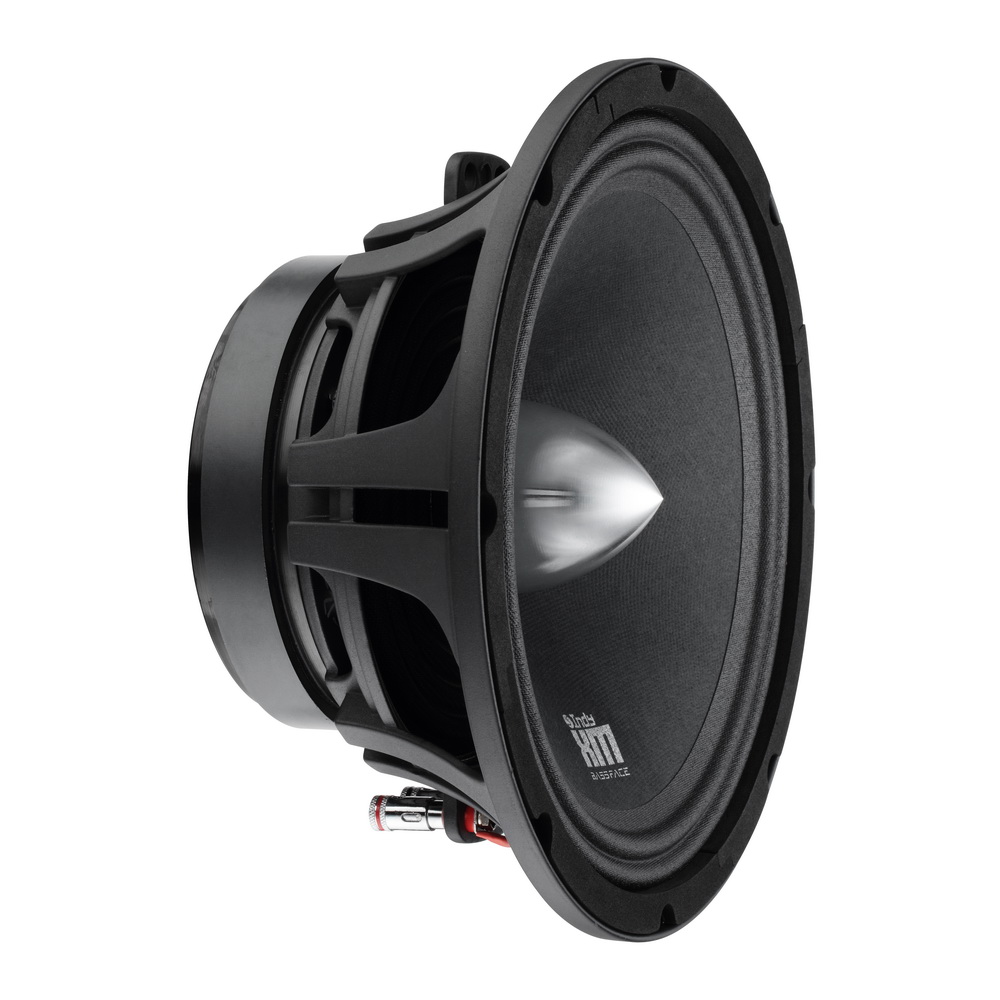

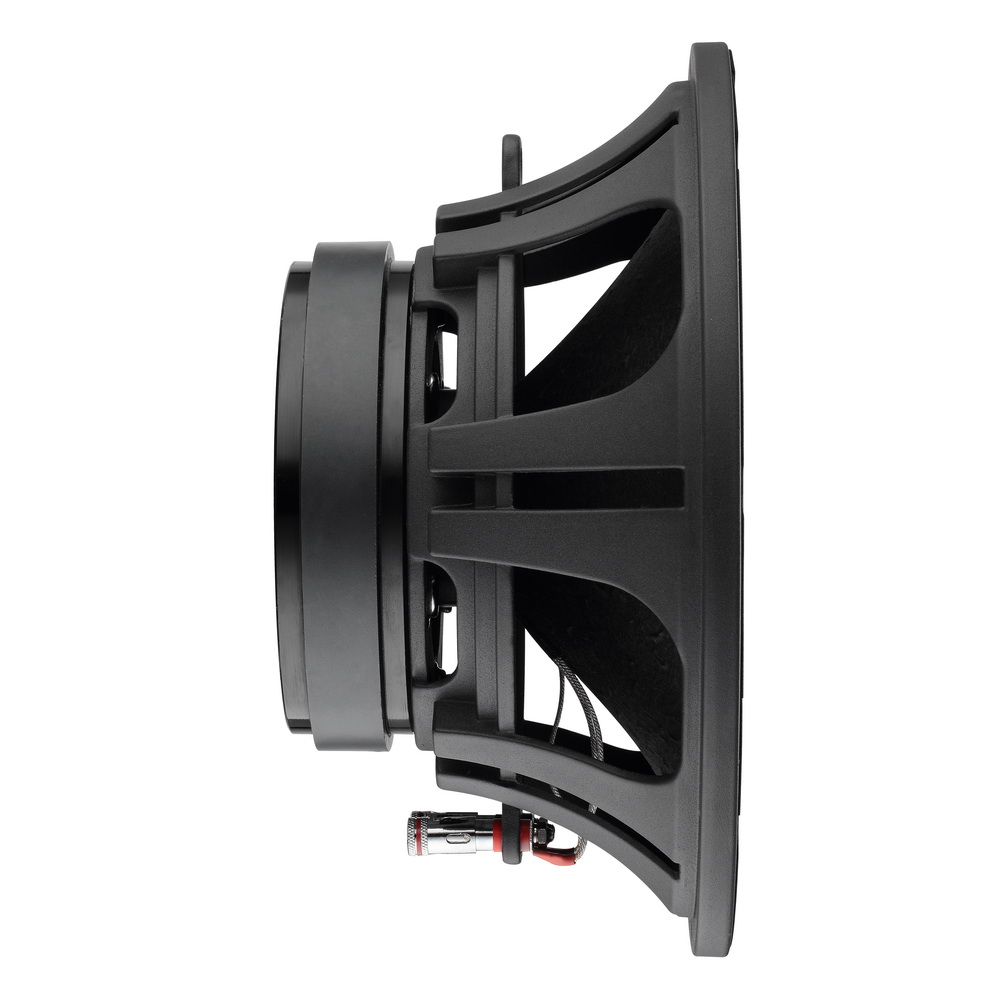

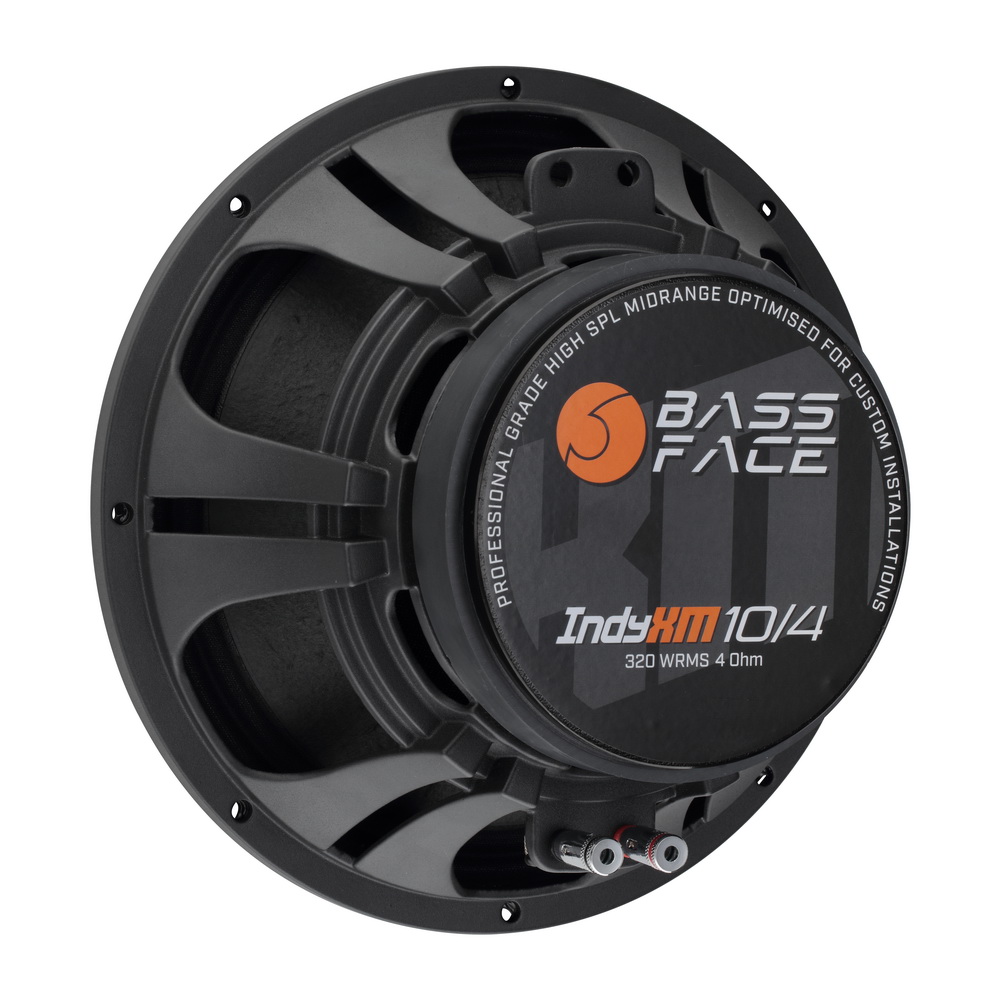

Bass Face IndyXM10/4 10" 1x4Ohm SVC 320WRMS
Τιμή πώλησης 146,00 €
Εκπτωση
(περιέχει ΦΠΑ)28,26 €
Τιμή / λ.:


Preloader

Introducing the Indy XM – Developed in our own facility here in the UK by our new engineering team. Whilst this is a brand new design, we used the concept of the successful SPL8M.2S as a performance benchmark. In the event, we have smashed the brief, with the Indy XM outperforming the old model easily and in every way. Using carefully custom designed heavy duty cloth spiders tuned to each exact size we were able to develop for excellent reliability and performance while implementing measures to optimise the frequency response. The ultra-lightweight copper coated coil allows for a more musical and accurate sound with the integrated Faraday ring on the VC to smooth the response. Indy XM also features a dual roll treated cloth surround, a coated dimpled textured surface to the cone that acts to increase the effective piston area to move more air and a CNC machined bullet phase plug to further hone response. Dual oversize leads provide as much failsafe reliability as possible when pushed beyond the limit. These are great for small or large door builds in car, or they will delight in the studio in a 2 way mid top box with an appropriate tweeter and crossover. It is important to remember that this is a cloth surround midrange, not a subwoofer. If the speaker is installed in an enclosure we advise a sealed setup to avoid the excursion peak that affects ported enclosures. For keen enthusiasts looking for a lightweight and accurate sounding speaker the Indy XM offers tremendous bandwidth, musicality and surprisingly good mid bass performance. It also has excellent detailed documentation making it easy to set up and use even in more advanced projects. We are sure that the Indy XM will be a firm favourite in the line-up.

Series


Indy

Key Facts


Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Date Added 15/02/2021
Date Modified 01/09/2021
Barcode 680044778631
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 4400
Product Height (mm) 122
Product Length (mm) 260
Product Width (mm) 260
Complete Product Pack Weight (g) 5000
Retail Carton L (mm) 280
Retail Carton W (mm) 280
Retail Carton H (mm) 140
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

Speaker Data


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 320
Overall Diameter (mm) 259
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 145
Installation Cut-out Diameter (mm) 238
Overall Depth (mm) 123
Mounting Depth (mm) 114
Front Protrusion From Mounting Plane (mm) 9.8
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 100-8,000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 95.84
Total Magnet Weight (Oz) 53.3
Magnet Size (mm) 145*25
Magnet Type Y35
Magnet Qty 1
Top Plate thickness (mm) 8
Back Plate thickness (mm) 8
Recommended Cable 14AWG/OFC
Recommended Bass Enclosure Type IB
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Diameter (mm) 62.95
Voice Coil Internal Diameter (mm) 60.5
Voice Coil External Diameter (mm) 62.95
Voice Coil Winding Hight (mm) 13
Voice Coil Winding (Layers) 2
Cone Type Coated Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 160
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Dual

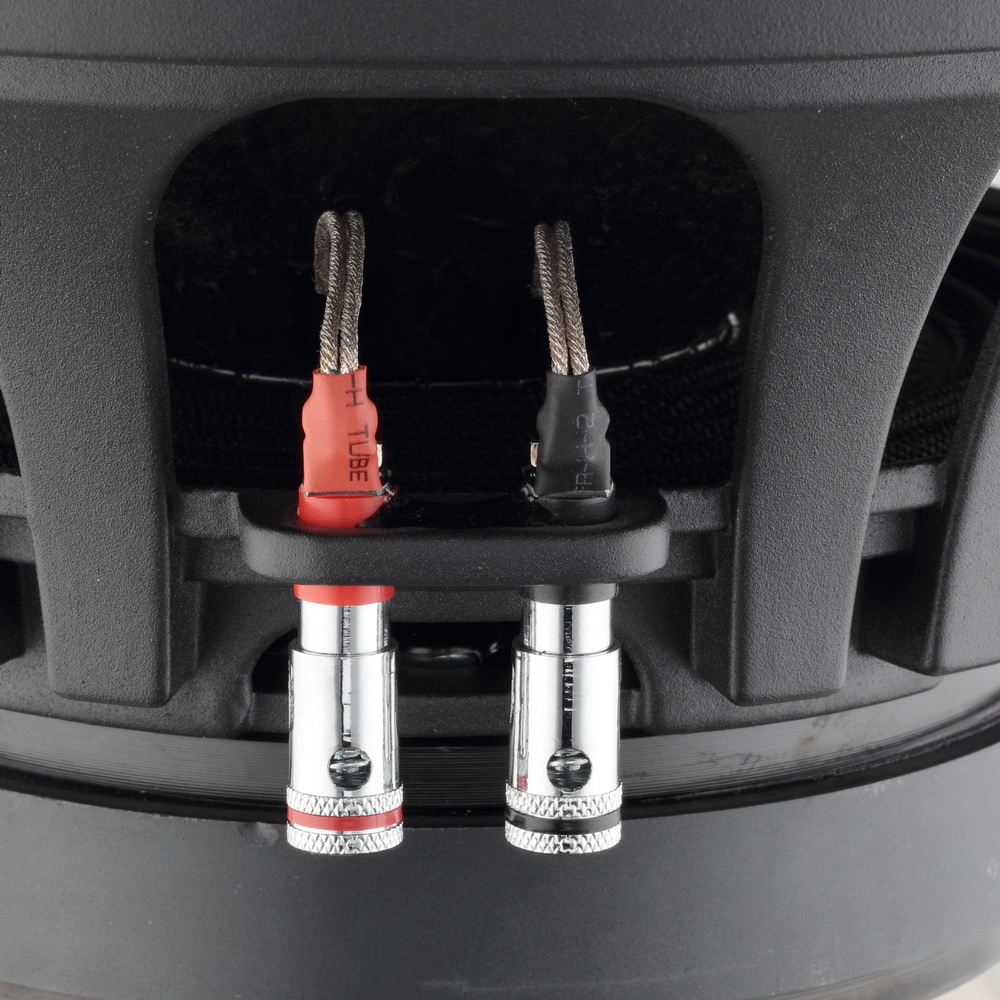

Terminal Push

Technical Highlights


  • High End Cast Basket
  • Copper Shorting Ring (Faraday Ring) For Optimum Impedance Profile
  • Lightweight Coated Paper Cone
  • Push Terminals
  • Heavy Duty Fabric Spider
  • Custom CNC Machined Bullet Phase Plug For A Smoother Response curve
  • Light Weight Copper Coated Coil For A More Musical Response
  • Dual Tinsel Leads For Fail-Safe In Extreme Use
  • Y35 53 Oz Magnet Structure
  • Large Ceramic Magnet

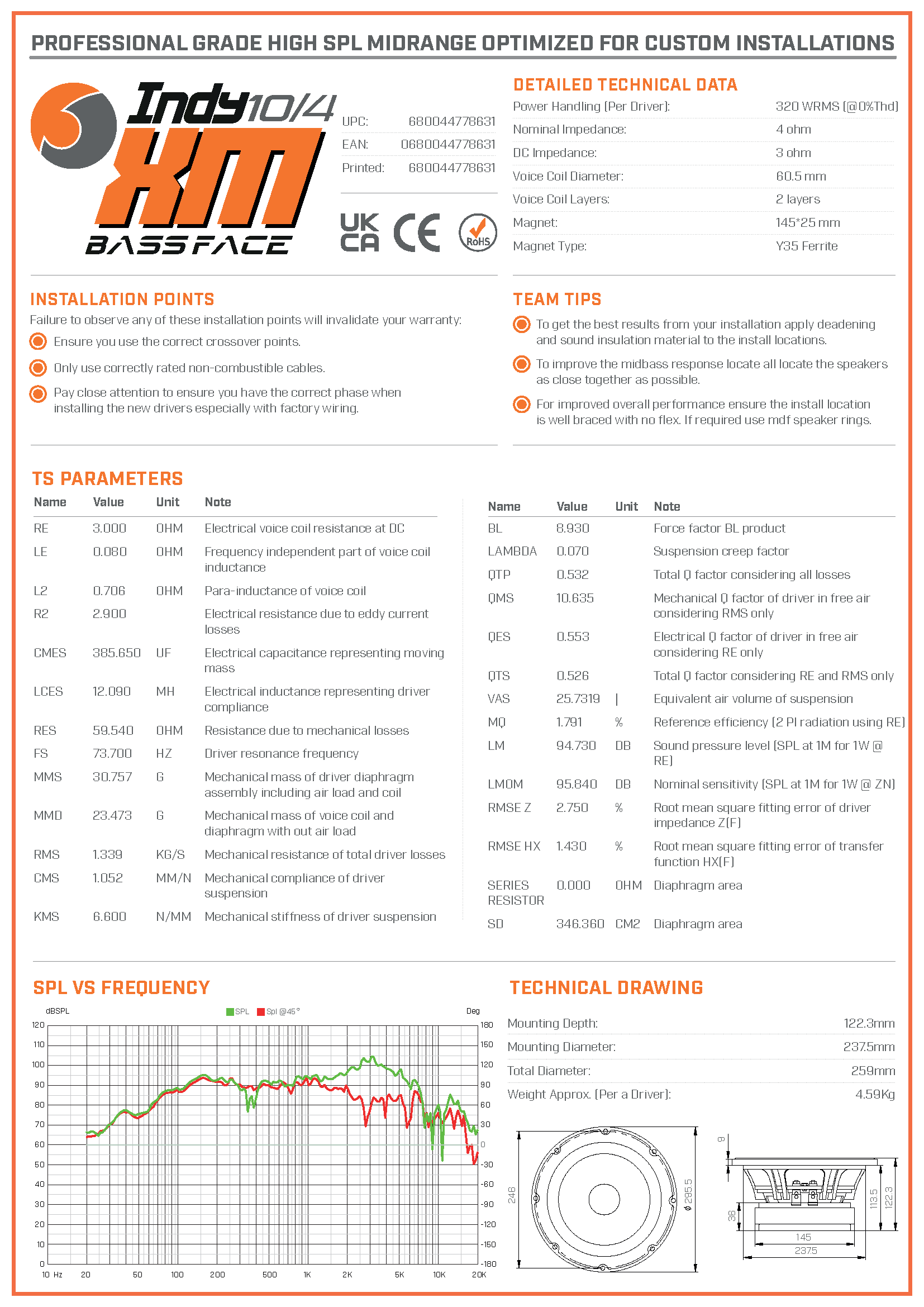

TS Parameters


Test Conditions After Full Brake-In
Re (Ohm) 3.10
Le(mH) 0.080
L2(mH) 0.706
R2(Ohm) 2.90
Cmes(uF) 385.65
Lces(mH) 12.09
Res(Ohm) 59.54
fs(Hz) 73.7
Mms (g) 30.757
MMd (g) 23.473
Rms(kg/s) 1.339
Cms(mm/N) 0.152
Kms(N/mm) 6.60
BL (T m) 8.930
Lambda s 0.070
Qtp 0.532
Qms 10.635
Qes 0.553
Qts 0.526
Vas (Ltr) 25.7319
n0(%) 1.791
Lm(dB) 94.73
Lnom(dB) 95.84
rmse Z(%) 2.75
rmse Hx(%) 1.43
Sd(cm2) 346.36
SPL (db/1Wm) 95.84
Xmax Single Way Total (mm) 2.5
