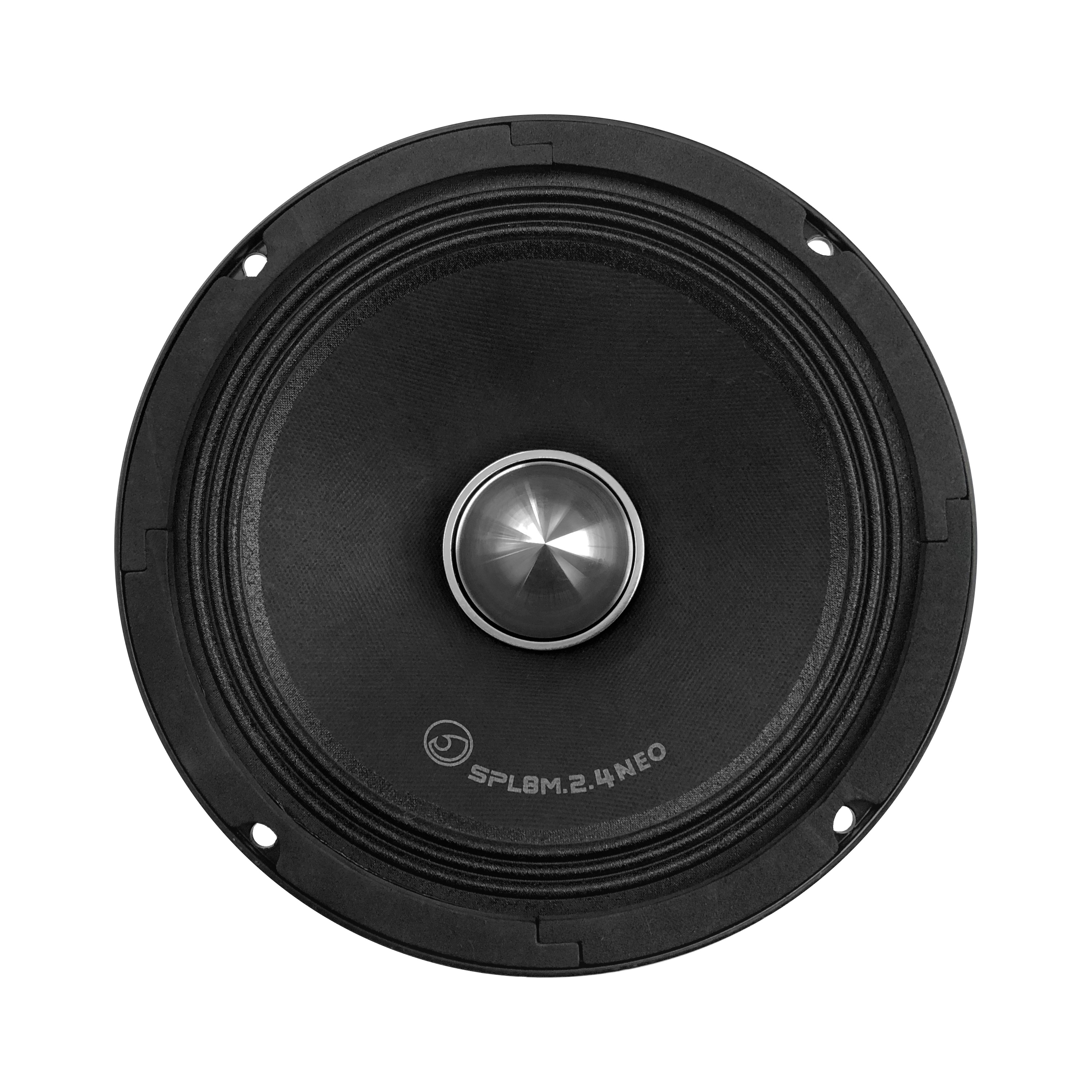

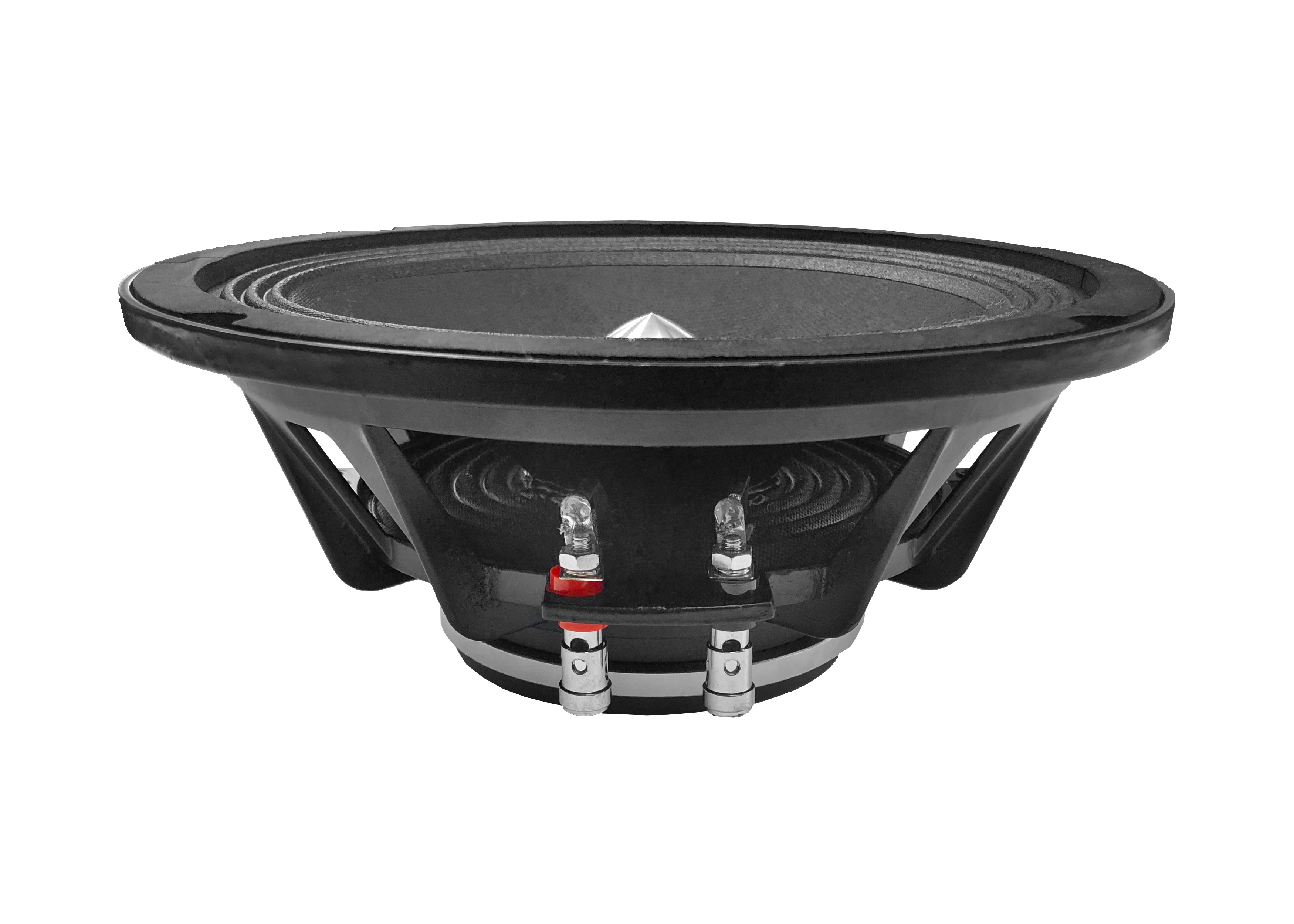

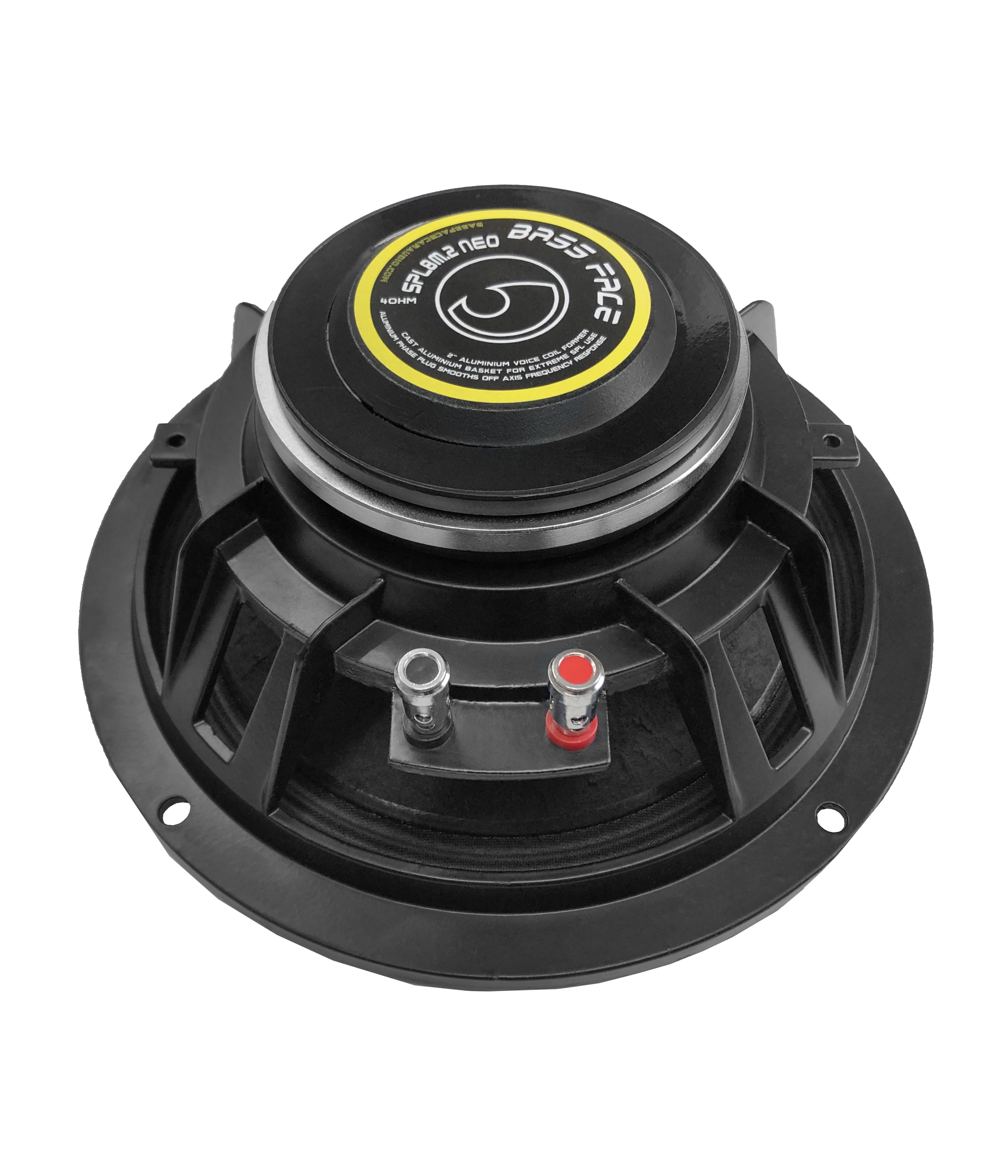

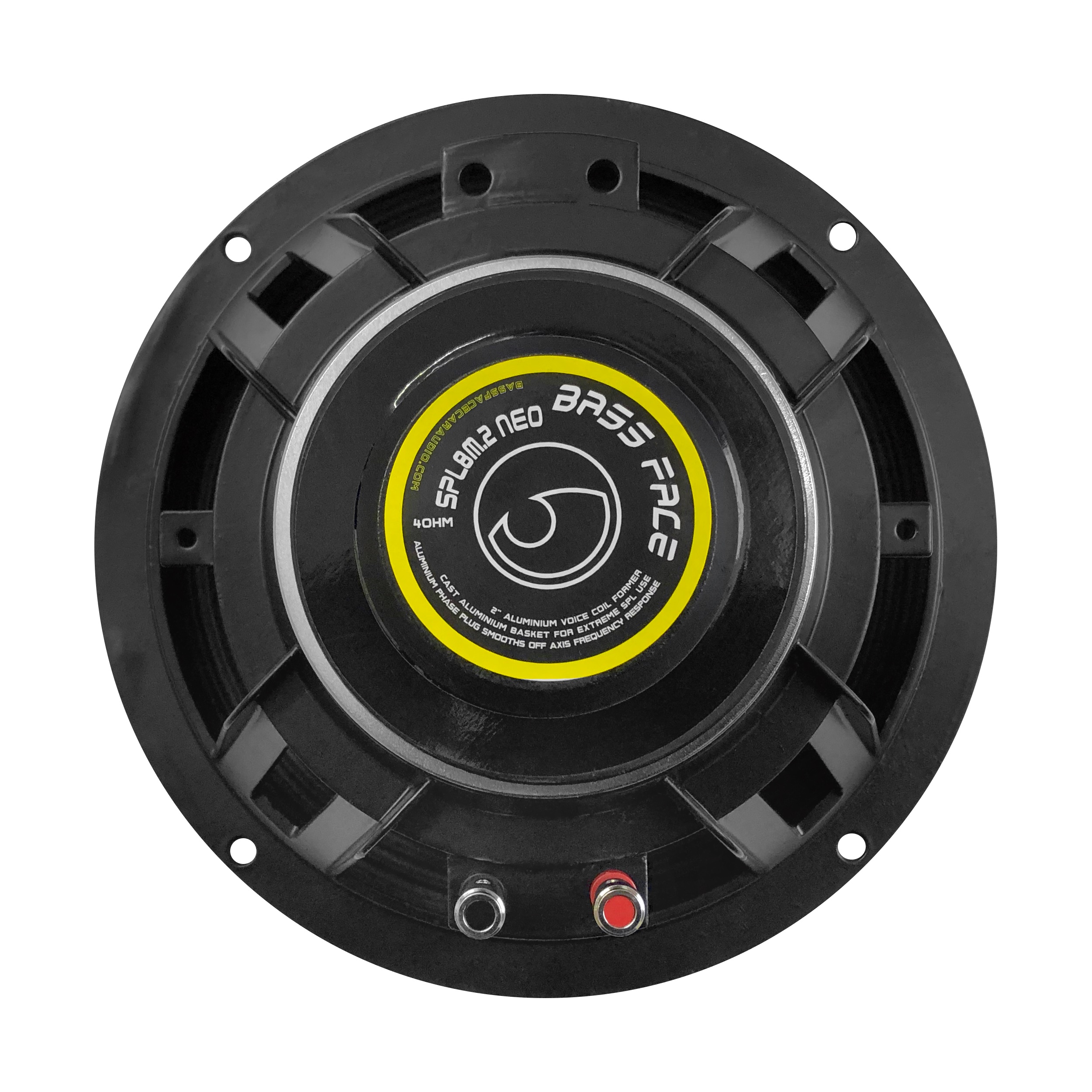

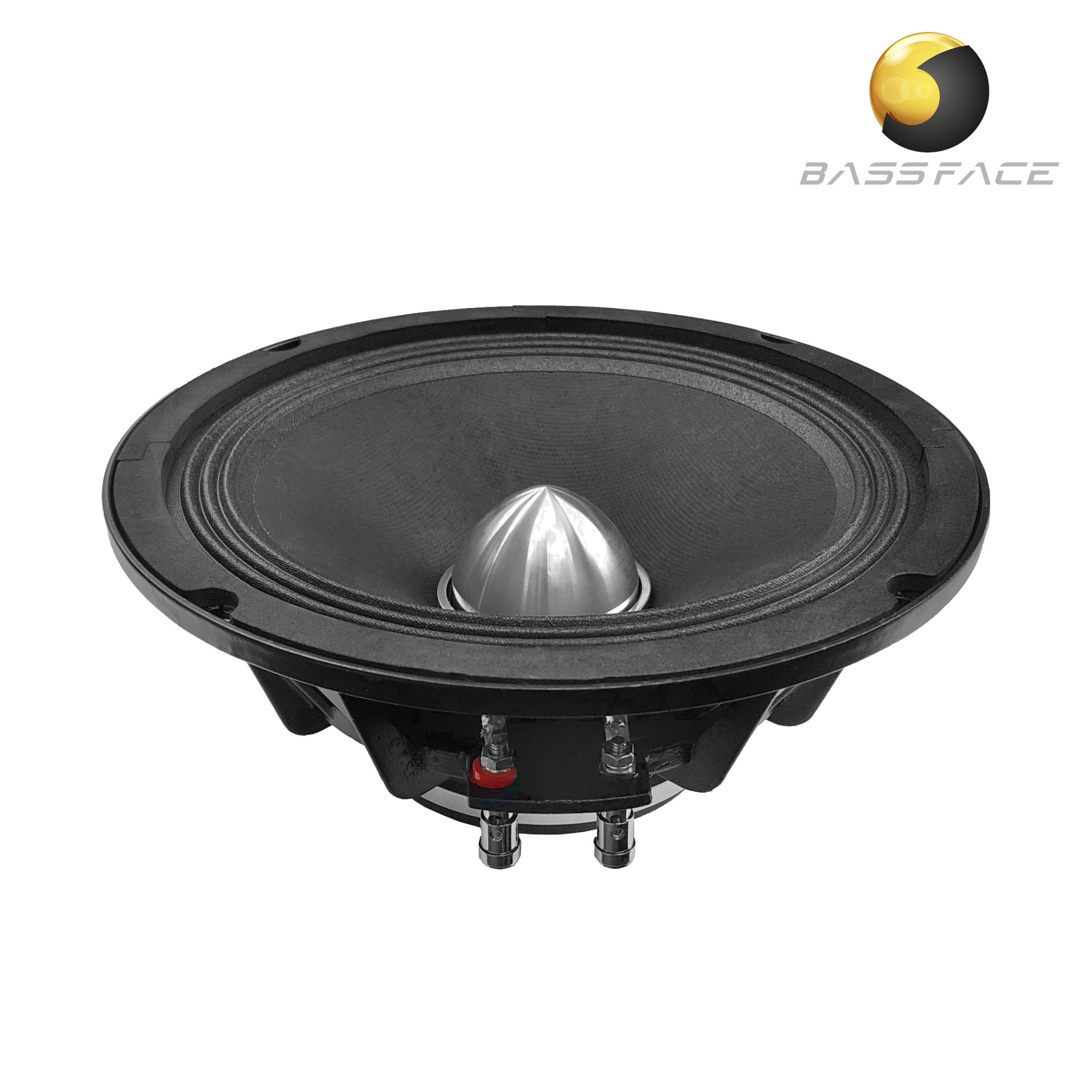

Introducing the Bassface SPL8M.2NEO
– Professional series product for professional and automotive applications, where an extremely high power, high output, small form factor driver is required. This overbuilt heavy duty driver was designed to provide extreme output and super sound quality in one driver. A strong cast basket eliminates distortion caused by flex and resonances in the basket assembly and the 2″ High temperature voice coil is supported buy a triple roll treated cloth surround and a heavy duty cloth spider. A dimpled textured surface to the cone acts to increase the effective piston area, in turn moving more air, creating more SPL. This is the top of the range version sporting a Neodymium N38 magnet for perfect musicality, tone and performance. From every angle this product screams quality, and delivers. With integrated Faraday Ring on the VC for optimal response these are great for small or large door builds in car or in the studio in a 2 way mid top box with an appropriate tweeter and crossover. You only have to look at the spec to understand what these are capable of – 250w RMS per woofer. These need properly amplifying with dedicated amp channels. We suggest 500-1000w RMS per pair. An amp with 250w RMS per channel at 4 ohm would be acceptable but 500w RMS is where you will see these speakers really come into their own. This is the 4 Ohm version.
Συνδεσμολογία
System Power
Full Speaker System Recommended Peak Power Input (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) |
1000 |
Full Speaker System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) |
500 |
Technical Highlights
- Copper Shorting Ring (Faraday Ring) For Optimum Impedance Profile
- Cast Aluminium Basket
- Super High Sensitivity
- Spade Terminals
- Stitched Tinsel Leads
- Top Quality N38 Neodymium Magnet

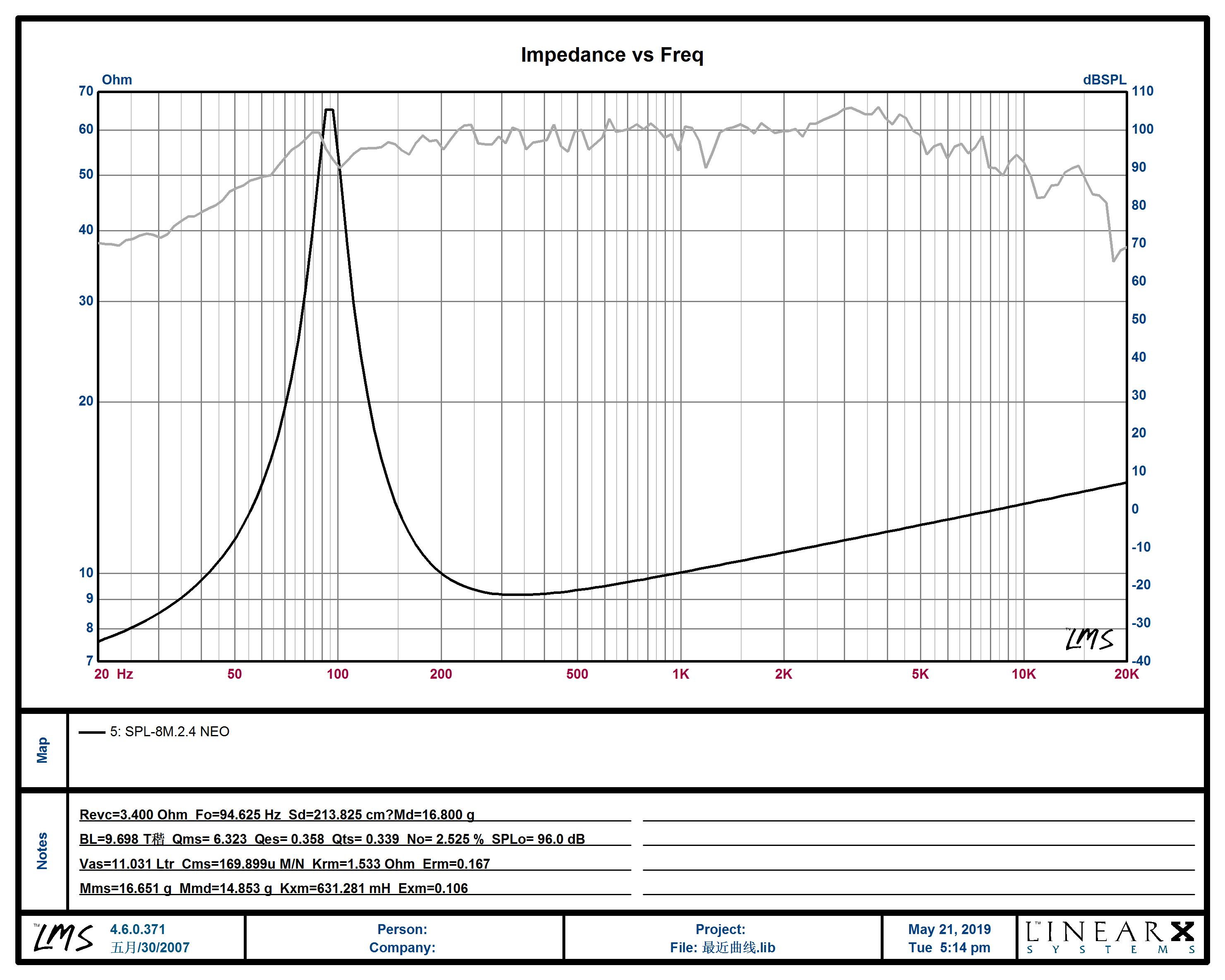

TS Parameters
Revc (Ohm) |
3.4 |
Fo (Hz) |
94.625 |
Sd (Cm sq) |
213.825 |
Md (g) |
16.8 |
BL (T m) |
9.698 |
Qms |
6.323 |
Qes |
0.358 |
Qts |
0.339 |
No (%) |
2.525 |
SPL (Db) |
96.0 |
Vas (Ltr) |
11.031 |
Cms (uM/N) |
169.899 |
Krm (Ohm) |
1.533 |
Erm |
0.167 |
Mms (g) |
16.651 |
MMd (g) |
14.853 |
Kxm (mOhm) |
631.281 |
Exm |
0.106 |
Key Facts
Product Category |
Midbass & Midrange Speakers |
Version |
1 |
Series |
Hammer |
Date Modified |
11/09/2019 |
Barcode |
680044796000 |
Production Status |
Current |
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) |
1900 |
Complete Product Pack Weight (g) |
2000 |
Retail Carton L (mm) |
220 |
Retail Carton W (mm) |
220 |
Retail Carton H (mm) |
100 |
Warranty (Months) |
12 |
Sold As |
Single |
Tweeter Data
Magnet Diameter (mm) |
100x60X6 |
Magnet Type |
N38 |
Speaker Data
Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) |
500 |
Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) |
250 |
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) |
190 |
Overall Diameter With Lugs (mm) |
210 |
Overall Diameter With Grilles (mm) |
210 |
Overall Diameter (mm) |
210 |
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) |
140 |
Installation Cutout Diameter (mm) |
197 |
Overall Depth (mm) |
90 |
Mounting Depth (mm) |
80 |
Front Protrusion From Mounting Plane (mm) |
10 |
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) |
80-8000 |
Impedance (Ohm) (Nominal) |
4 |
Sensitivity (db/1Wm) |
100 |
Magnet Type |
N38 |
Recommended Cable |
PSC10.1 |
Voice Coil Diameter (mm) |
50 |
