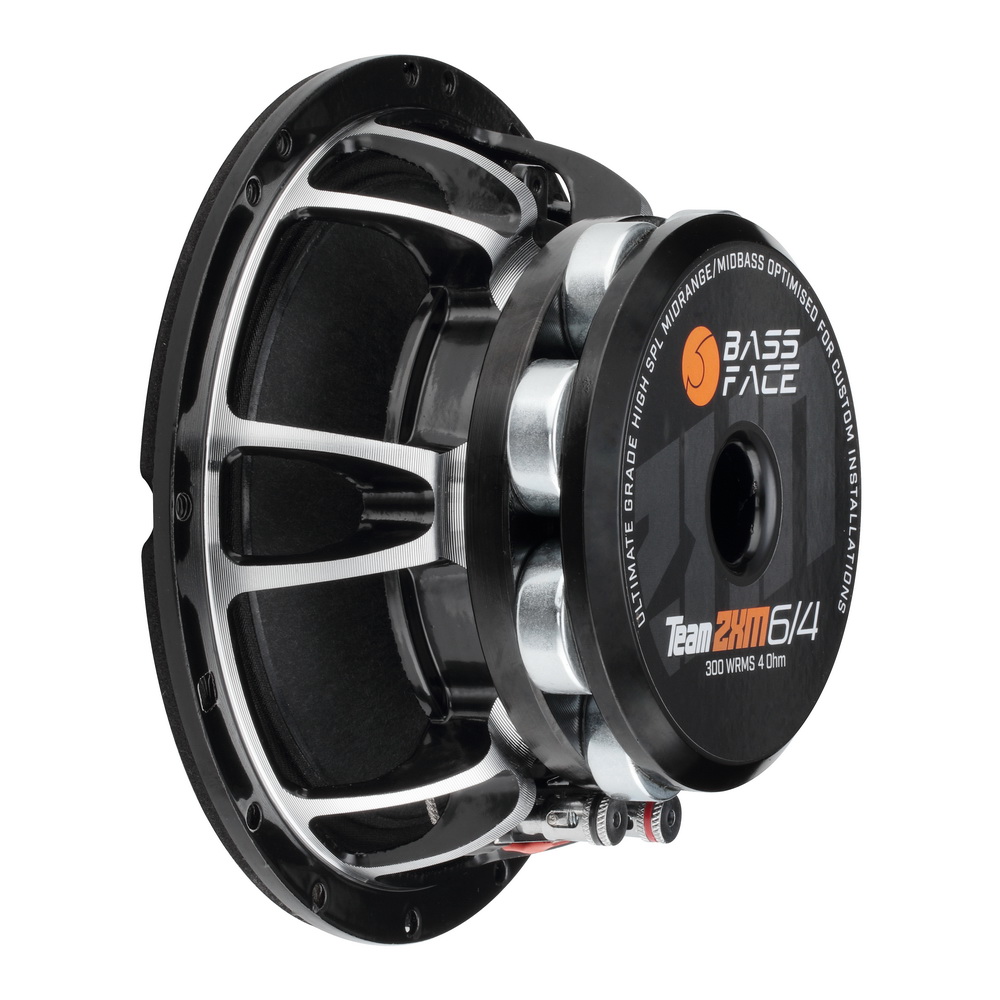

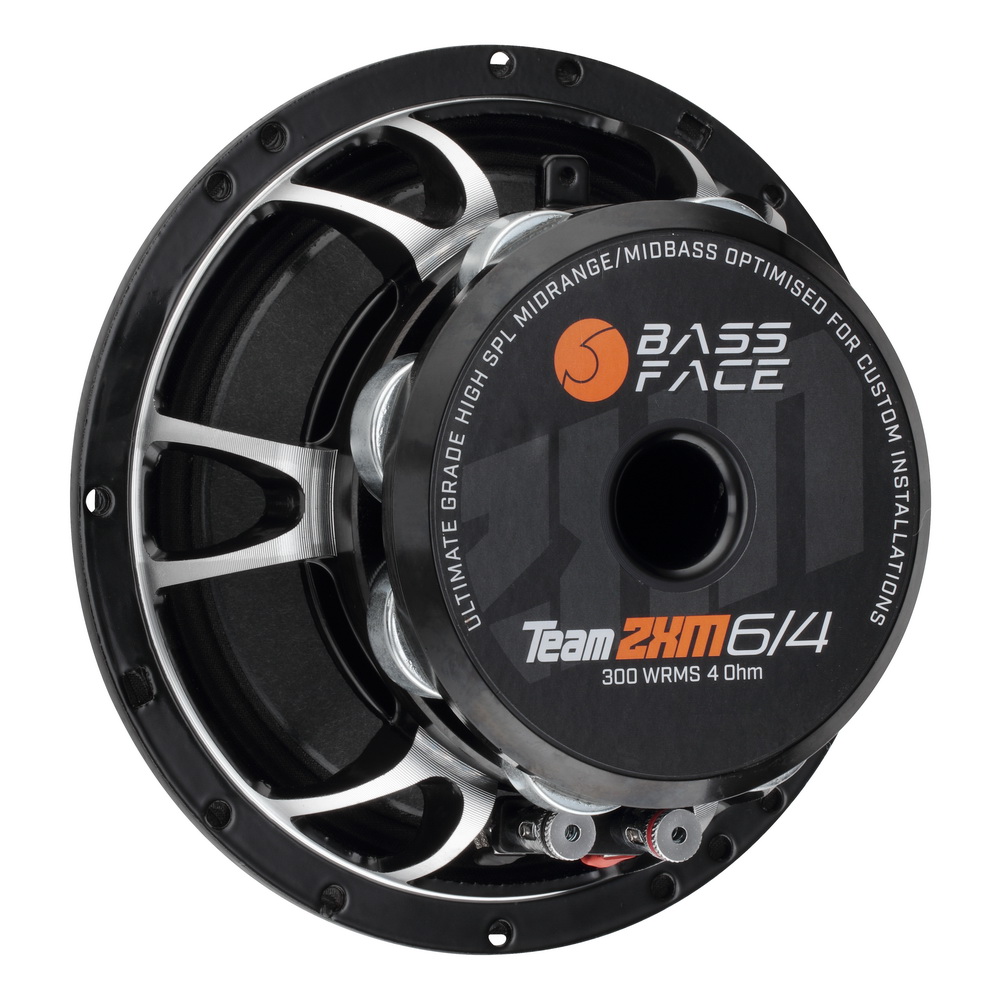

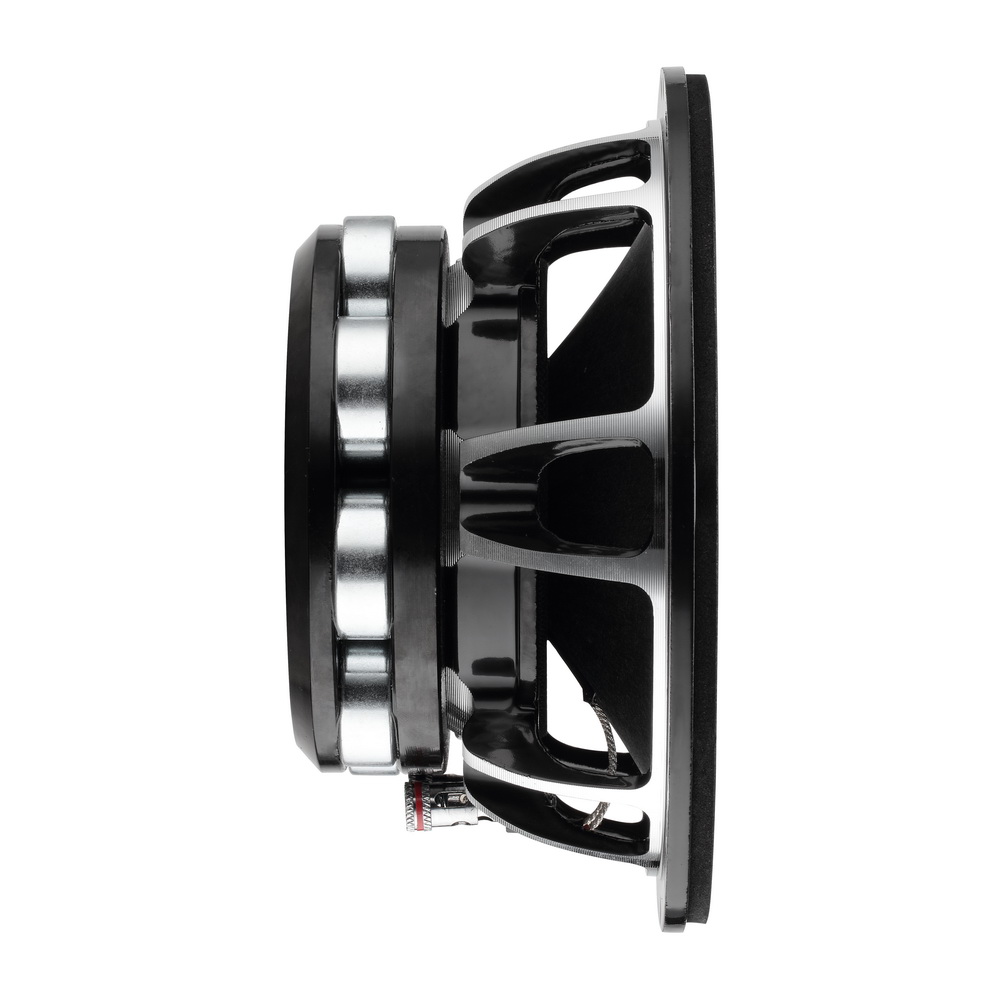

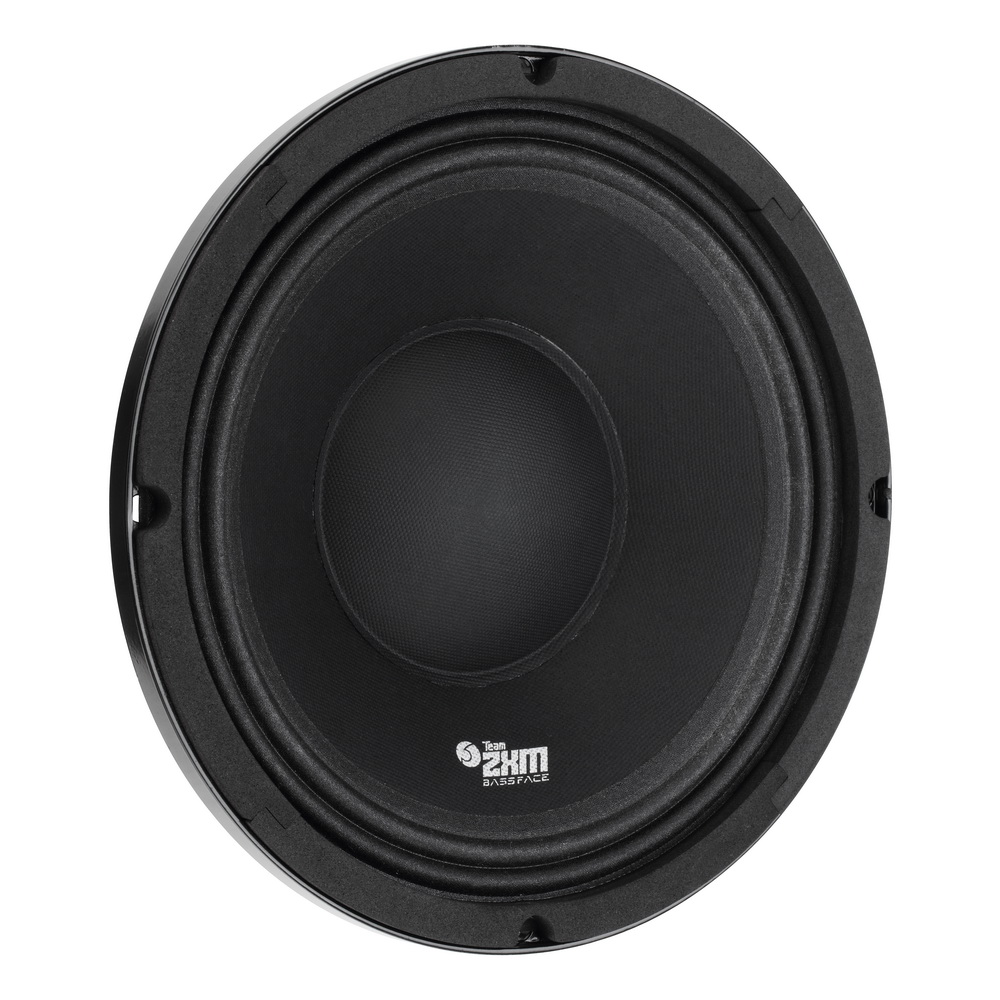

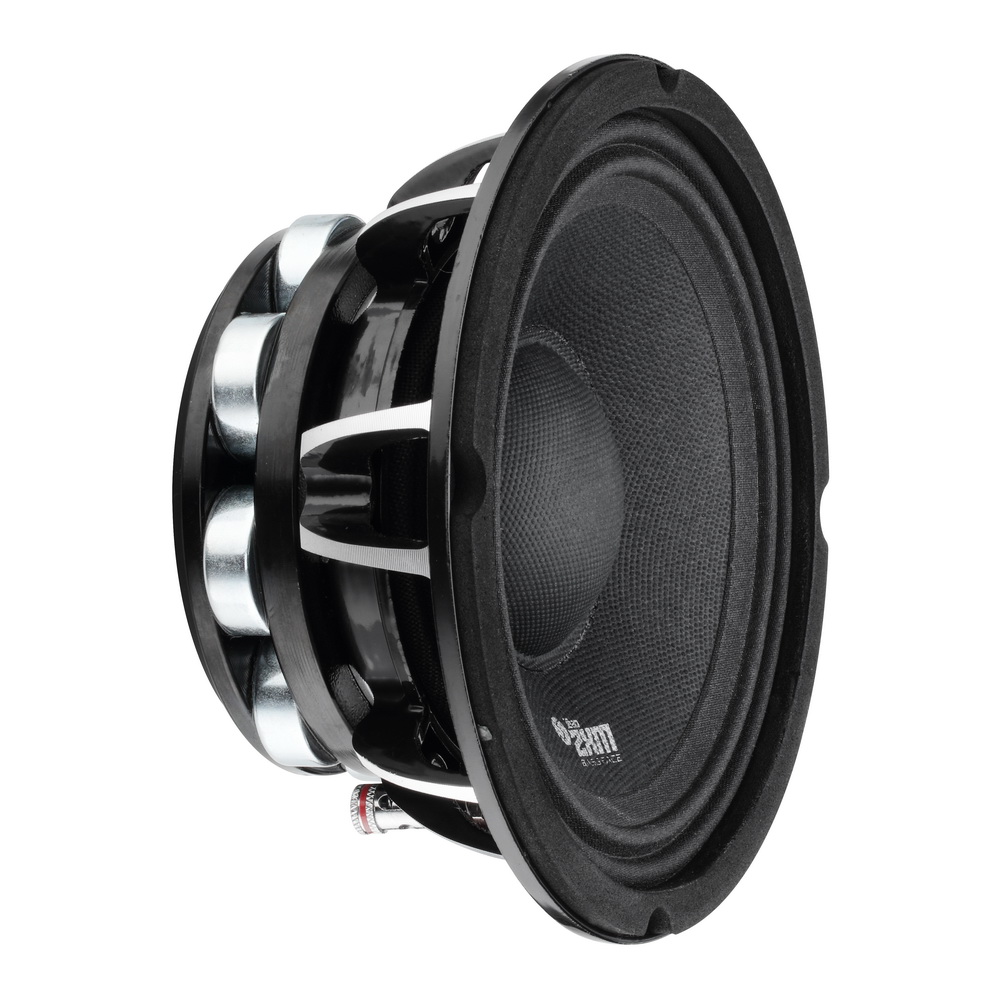

Bass Face TeamZXM6/4
Περιγραφή
Introducing the Team ZXM – Developed in our own facility here in the UK by our new engineering team. This is a clean sheet design which has been developed to offer elite level performance. Using carefully designed custom heavy duty cloth spiders tuned to each exact size we were able to develop for excellent reliability and performance while implementing measures to optimise the frequency response. The ultra-light weight copper coated coil allows for more sonic accuracy and high-end musical characteristics. We use a ground up built small piece Neodymium motor to optimise the cooling efficiency and motor strength while keeping the cost to a level where the units can realistically still be installed in quantity. Team ZXM also features a dual roll treated cloth surround a coated dimpled textured surface to the cone that acts to increase the effective piston area to move more air, creating more SPL while providing protection against the elements. We included dual oversize leads to provide an additional fail safe when pushing beyond the limits of the performance envelope in competition. These are great for small or large door builds in car, or they will delight in the studio in a 2 way mid top box with an appropriate tweeter and crossover. For keen enthusiasts looking for a lightweight and accurate sounding speaker the Team ZXM offers tremendous bandwidth, musicality and surprisingly good mid bass performance. It also has excellent detailed documentation making it easy to set up and use even in more advanced projects. We firmly believe that this is one of the best midrange / midbass speakers in its class.
Series
Key Facts
Product Category | Midbass & Midrange Speakers |
Version | 1 |
Series | Team |
Date Added | 15/02/2021 |
Date Modified | 03/09/2021 |
Barcode | 680044778648 |
Production Status | Current |
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) | 2450 |
Product Height (mm) | 87 |
Product Length (mm) | 170 |
Product Width (mm) | 170 |
Complete Product Pack Weight (g) | 2700 |
Retail Carton L (mm) | 190 |
Retail Carton W (mm) | 190 |
Retail Carton H (mm) | 107 |
Operating Temperature (Degrees Celsius) | 0-50 |
Warranty (Months) | 12 |
Sold As | Single |
Speaker Data
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) | 300 |
Overall Diameter (mm) | 165 |
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) | 111 |
Installation Cut-out Diameter (mm) | 145 |
Overall Depth (mm) | 88 |
Mounting Depth (mm) | 71 |
Front Protrusion From Mounting Plane (mm) | 8.3 |
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) | 100-7,500 |
Impedance (Ohm) (Nominal) | 4 |
Sensitivity (db/1Wm) | 95.99 |
Total Magnet Weight (Oz) | 12.8 |
Magnet Size (mm) | 28*10*8pcs |
Magnet Type | N40 |
Magnet Qty | 8 |
Top Plate thickness (mm) | 10 |
Back Plate thickness (mm) | 10 |
Recommended Cable | 12AWG/OFC |
Voice Coil Former Spec | TIL |
Voice Coil Type | CCA Round Wire |
Voice Coil Diameter (mm) | 52.1 |
Voice Coil Internal Diameter (mm) | 50.8 |
Voice Coil External Diameter (mm) | 52.1 |
Voice Coil Winding Hight (mm) | 11.7 |
Voice Coil Winding (Layers) | 2 |
Cone Type | Coated Non Pressed Paper |
Spider Compliance | soft |
Spider Type | Linear |
Spider Diameter (mm) | 100 |
Spider Design | Single |
Surround | Dual Roll |
Surround Material | Cloth |
Tinsel Wire | Dual |

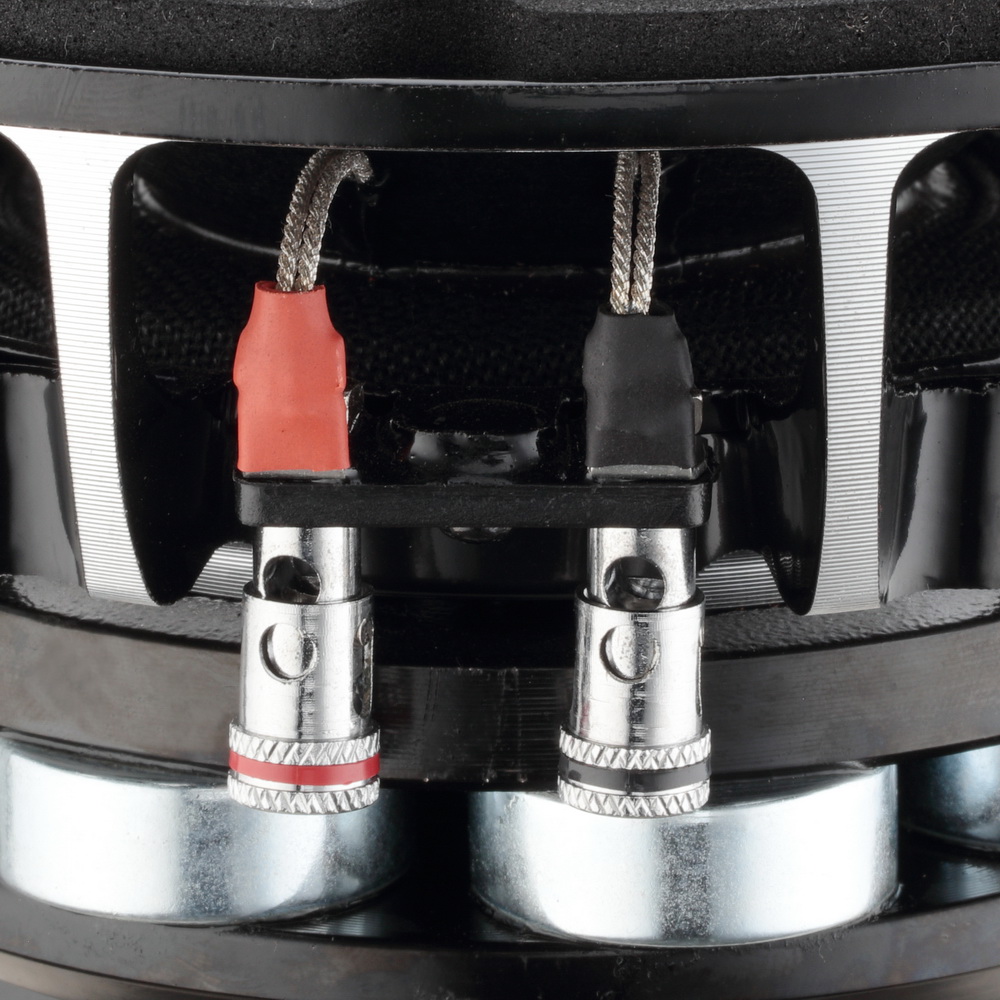

Terminal | Push |
Technical Highlights
- High End Cast Basket
- Copper Shorting Ring (Faraday Ring) For Optimum Impedance Profile
- Lightweight Coated Paper Cone
- Push Terminals
- Heavy Duty Fabric Spider
- 8PCS N40 Magnet Structure
- Light Weight Copper Coated Coil For A More Musical Response
- Dual Tinsel Leads For Fail-Safe In Extreme Use

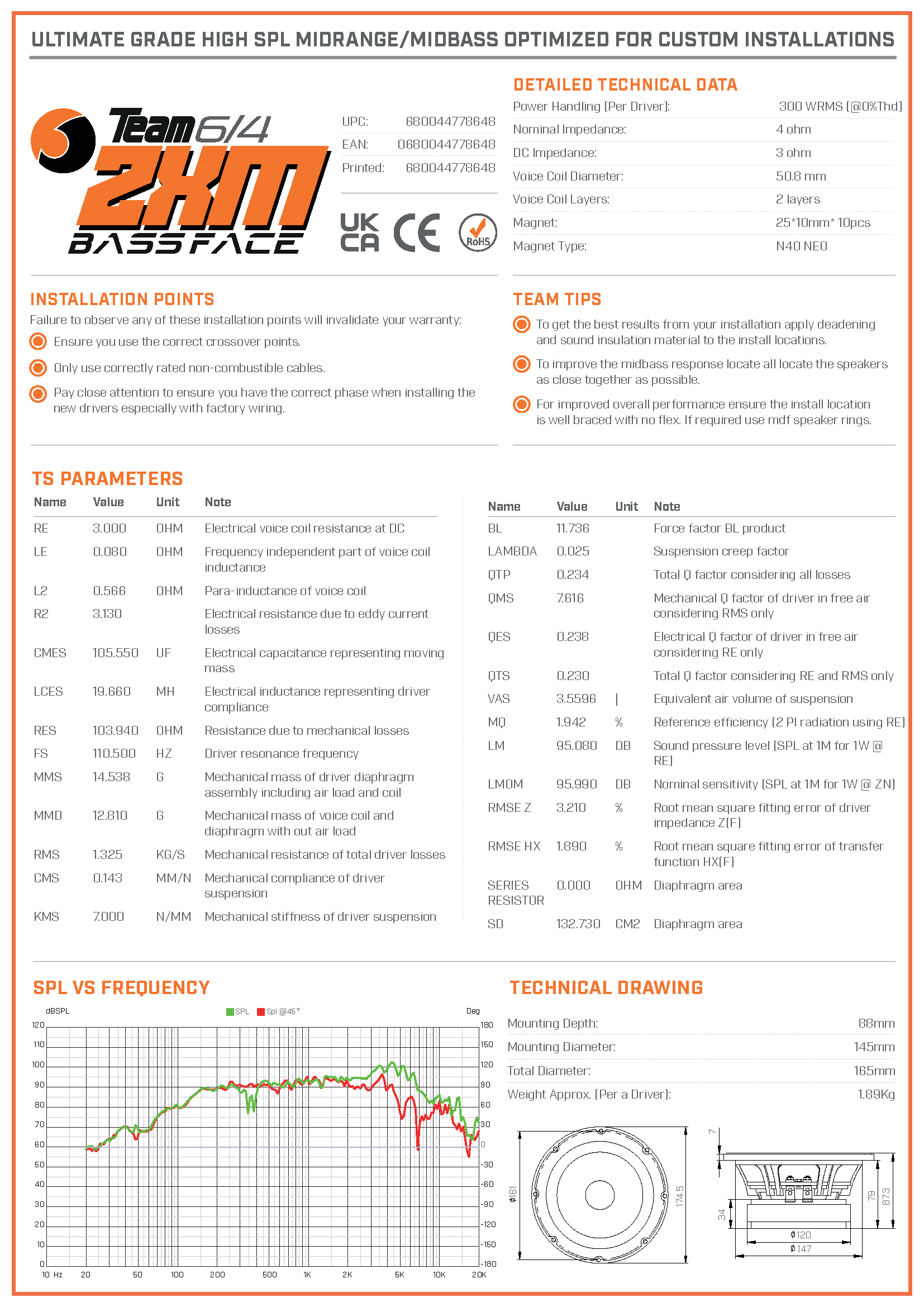

TS Parameters
Test Conditions | After Full Brake-In |
Re (Ohm) | 3.24 |
Le(mH) | 0.080 |
L2(mH) | 0.566 |
R2(Ohm) | 3.13 |
Cmes(uF) | 105.55 |
Lces(mH) | 19.66 |
Res(Ohm) | 103.94 |
fs(Hz) | 110.5 |
Mms (g) | 14.538 |
MMd (g) | 12.810 |
Rms(kg/s) | 1.325 |
Cms(mm/N) | 0.143 |
Kms(N/mm) | 7.00 |
BL (T m) | 11.736 |
Lambda s | 0.025 |
Qtp | 0.234 |
Qms | 7.616 |
Qes | 0.238 |
Qts | 0.230 |
Vas (Ltr) | 3.5596 |
n0(%) | 1.942 |
Lm(dB) | 95.08 |
Lnom(dB) | 95.99 |
rmse Z(%) | 3.21 |
rmse Hx(%) | 1.89 |
Sd(cm2) | 132.73 |
SPL (db/1Wm) | 95.99 |
Xmax Single Way Total (mm) | 1.85 |
