Bass Face TeamZXM8/4 8" 1x4Ohm SVC 400WRMS
Τιμή πώλησης 161,00 €
Εκπτωση
(περιέχει ΦΠΑ)31,16 €
Τιμή / λ.:


Preloader

Introducing the Team ZXM – Developed in our own facility here in the UK by our new engineering team. This is a clean sheet design which has been developed to offer elite level performance. Using carefully designed custom heavy duty cloth spiders tuned to each exact size we were able to develop for excellent reliability and performance while implementing measures to optimise the frequency response. The ultra-light weight copper coated coil allows for more sonic accuracy and high-end musical characteristics. We use a ground up built small piece Neodymium motor to optimise the cooling efficiency and motor strength while keeping the cost to a level where the units can realistically still be installed in quantity. Team ZXM also features a dual roll treated cloth surround a coated dimpled textured surface to the cone that acts to increase the effective piston area to move more air, creating more SPL while providing protection against the elements. We included dual oversize leads to provide an additional fail safe when pushing beyond the limits of the performance envelope in competition. These are great for small or large door builds in car, or they will delight in the studio in a 2 way mid top box with an appropriate tweeter and crossover. For keen enthusiasts looking for a lightweight and accurate sounding speaker the Team ZXM offers tremendous bandwidth, musicality and surprisingly good mid bass performance. It also has excellent detailed documentation making it easy to set up and use even in more advanced projects. We firmly believe that this is one of the best midrange / midbass speakers in its class.

Series


Team

Key Facts


Product Category Midbass & Midrange Speakers
Version 1
Series Team
Date Added 15/02/2021
Date Modified 03/09/2021
Barcode 680044778655
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 3500
Product Height (mm) 98
Product Length (mm) 205
Product Width (mm) 205
Complete Product Pack Weight (g) 4000
Retail Carton L (mm) 225
Retail Carton W (mm) 225
Retail Carton H (mm) 118
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

Speaker Data


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 400
Overall Diameter (mm) 202
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 133
Installation Cut-out Diameter (mm) 180
Overall Depth (mm) 99
Mounting Depth (mm) 90
Front Protrusion From Mounting Plane (mm) 9.3
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 100-5,000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 97.45
Total Magnet Weight (Oz) 17
Magnet Size (mm) 33*10*8pcs
Magnet Type N40
Magnet Qty 8
Top Plate thickness (mm) 11
Back Plate thickness (mm) 11
Recommended Cable 12AWG/OFC
Voice Coil Former Spec TIL
Voice Coil Type CCA Round Wire
Voice Coil Diameter (mm) 62.9
Voice Coil Internal Diameter (mm) 61.1
Voice Coil External Diameter (mm) 62.9
Voice Coil Winding Hight (mm) 11.7
Voice Coil Winding (Layers) 2
Cone Type Coated Non Pressed Paper
Spider Compliance soft
Spider Type Linear
Spider Diameter (mm) 125
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Dual
Terminal Push

Technical Highlights

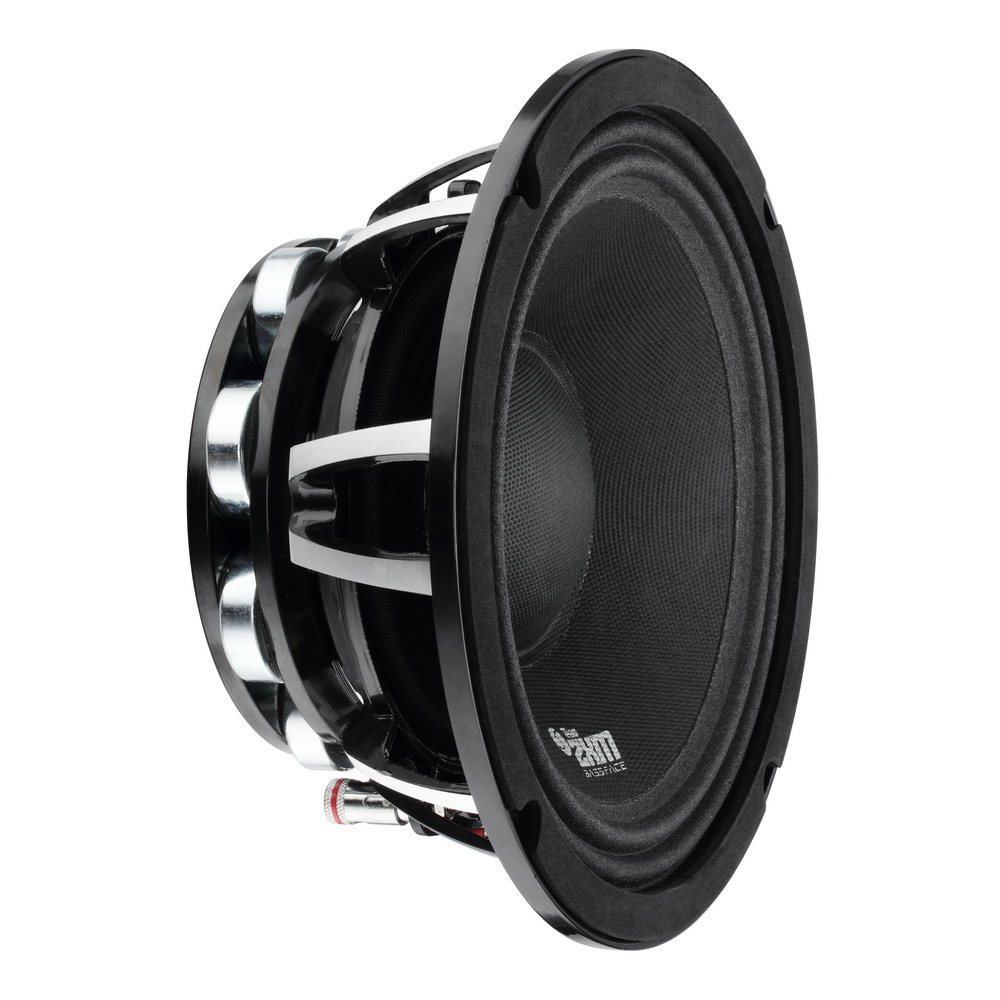

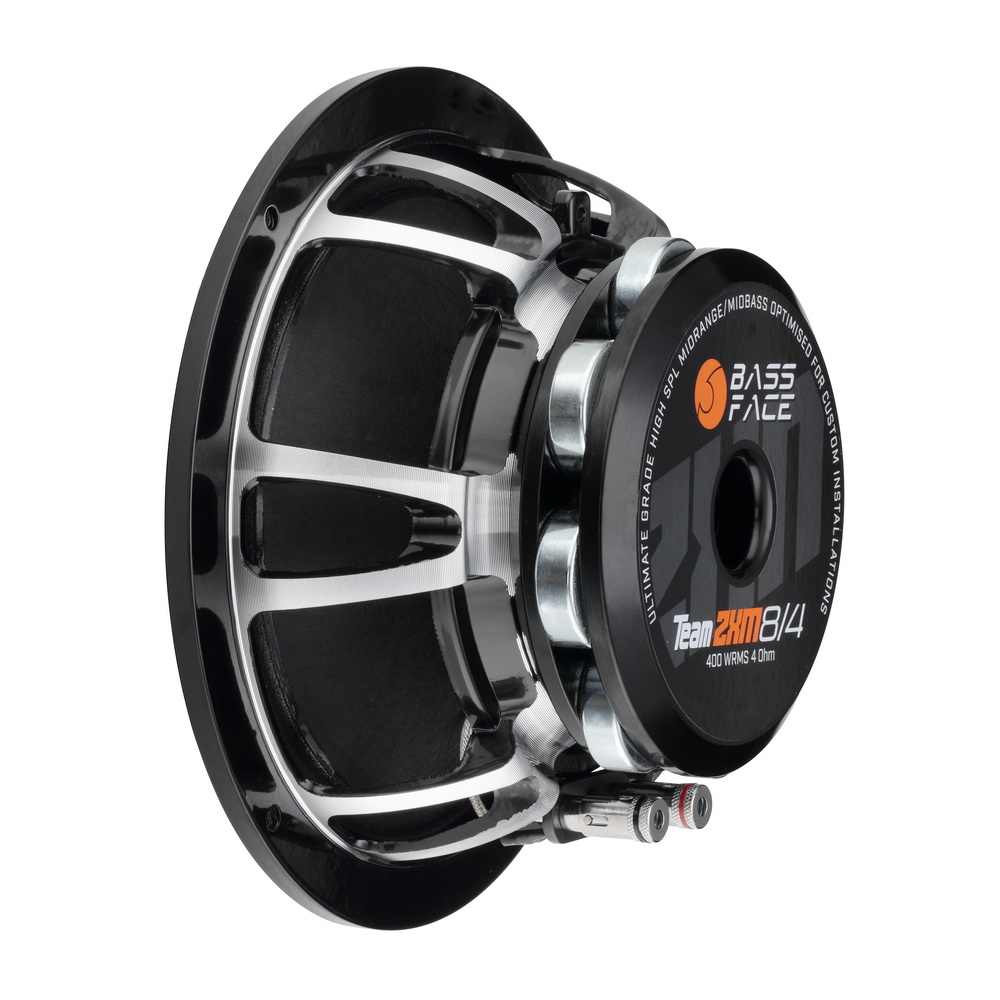

  • High End Cast Basket
  • Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile

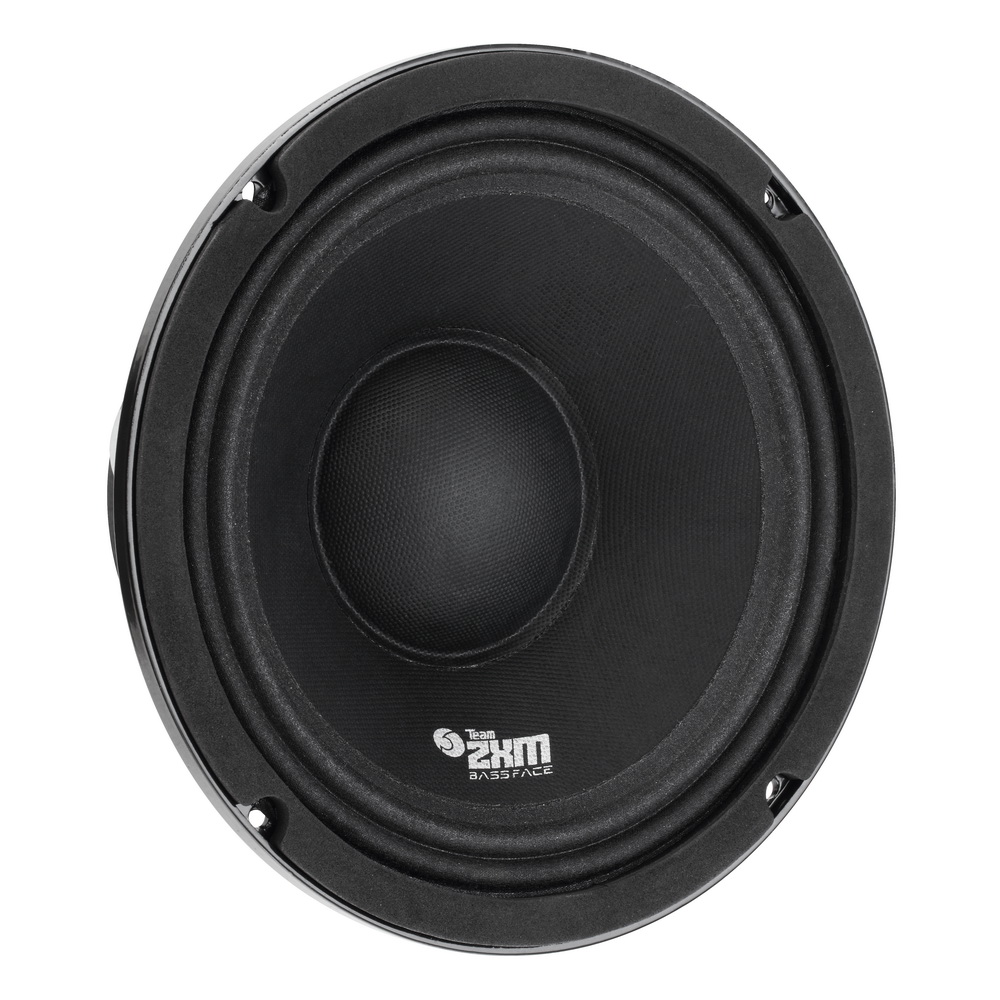

  • Lightweight Coated Paper Cone

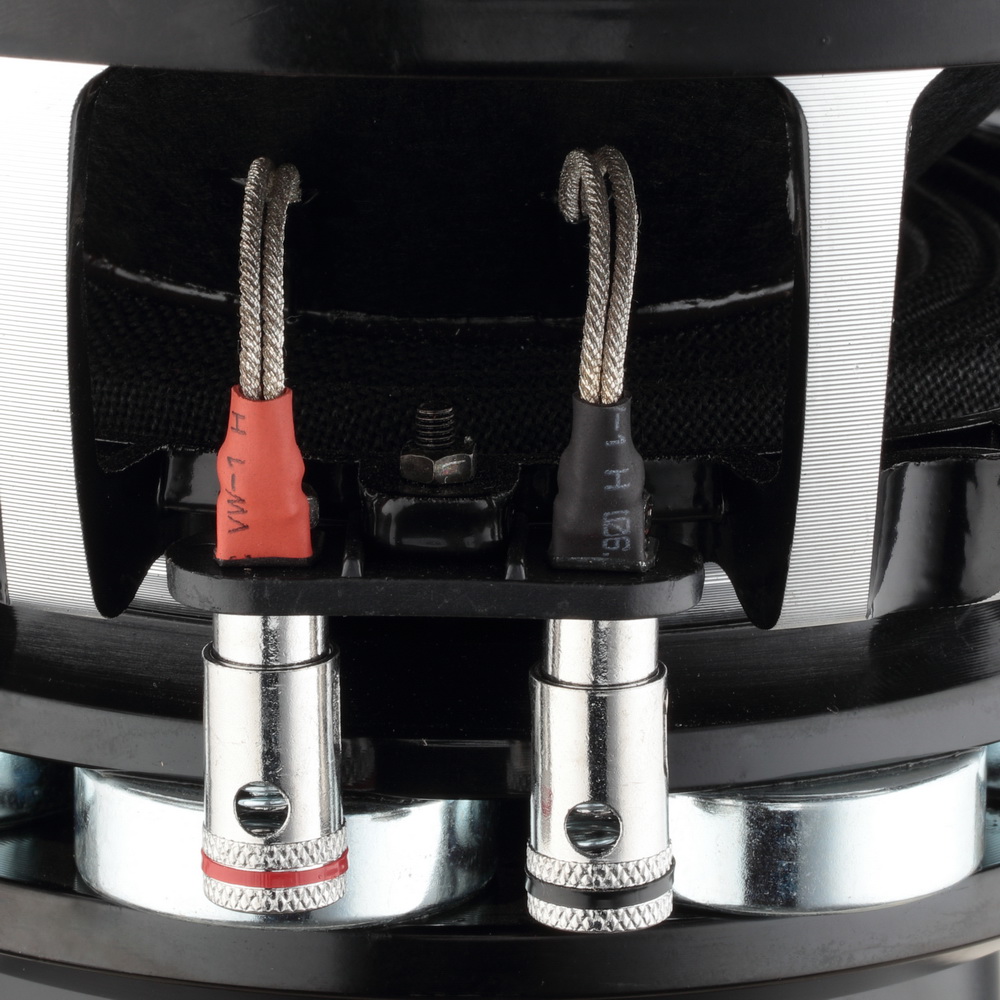

  • Push Terminals
  • Heavy Duty Fabric Spider

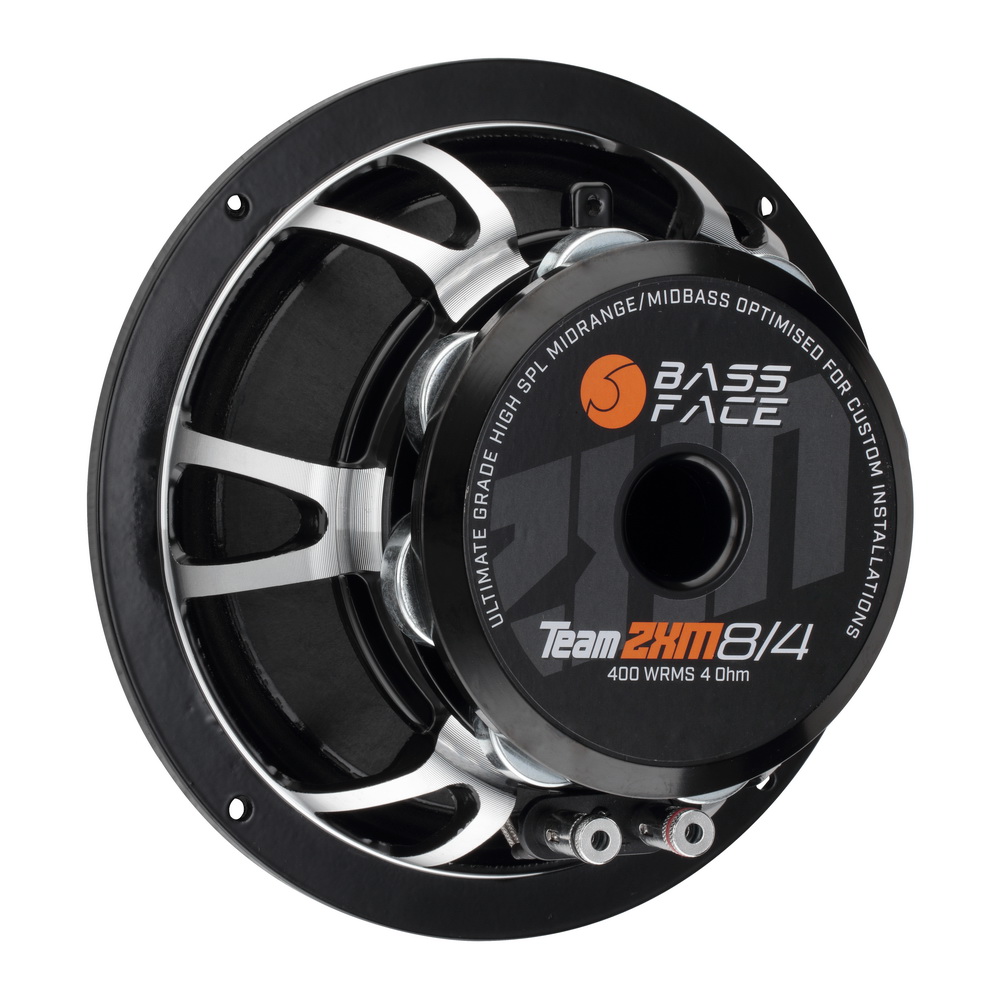

  • 8PCS N40 Magnet Structure
  • Light Weight Copper Coated Coil For A More Musical Response
  • Dual Tinsel leads For Fail-Safe In Extreme Use

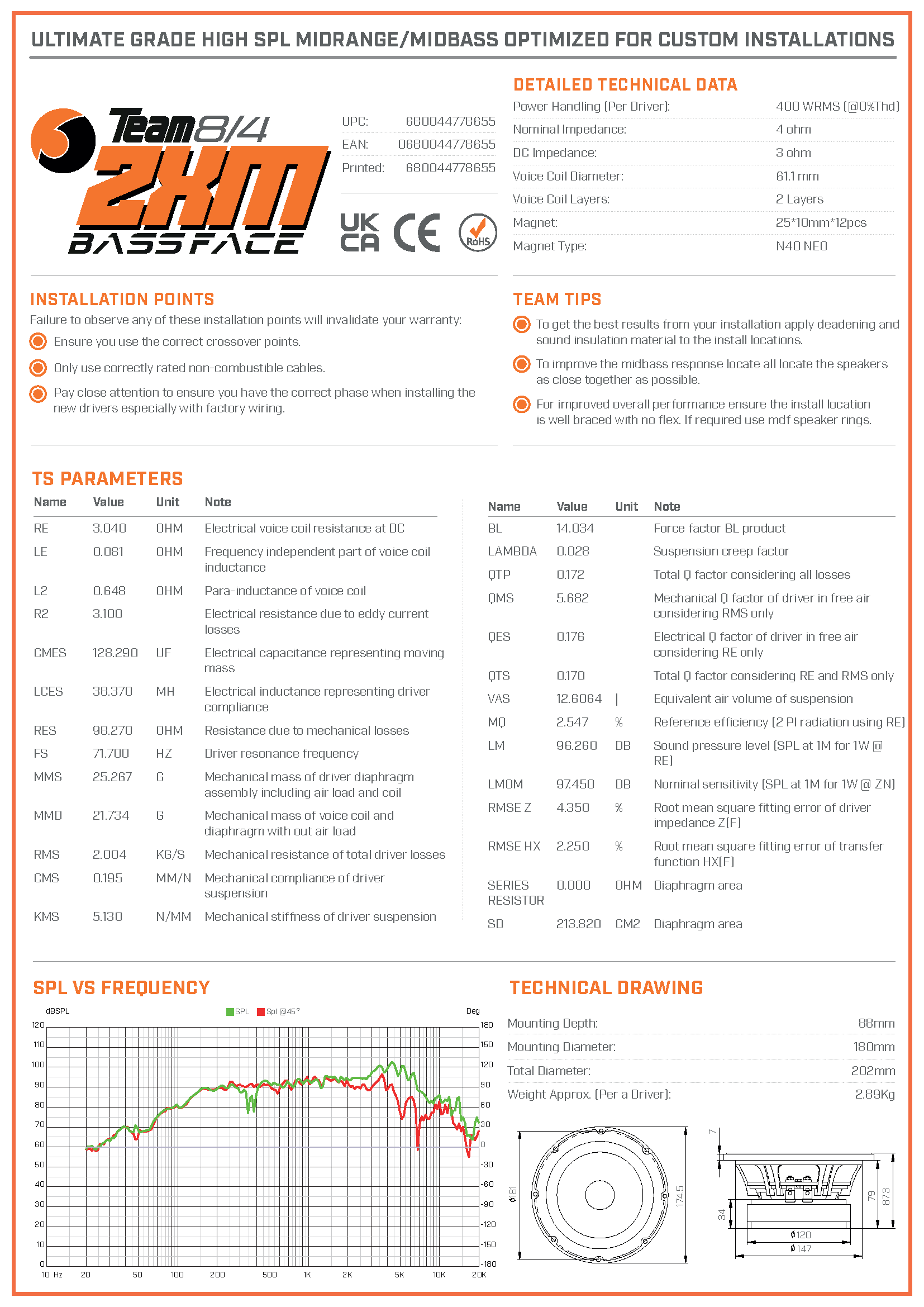

TS Parameters


Test Conditions After Full Brake-In
Re (Ohm) 3.04
Le(mH) 0.081
L2(mH) 0.648
R2(Ohm) 3.10
Cmes(uF) 128.29
Lces(mH) 38.37
Res(Ohm) 98.27
fs(Hz) 71.7
Mms (g) 25.267
MMd (g) 21.734
Rms(kg/s) 2.004
Cms(mm/N) 0.195
Kms(N/mm) 5.12
BL (T m) 14.034
Lambda s 0.028
Qtp 0.172
Qms 5.682
Qes 0.176
Qts 0.170
Vas (Ltr) 12.6064
n0(%) 2.547
Lm(dB) 96.26
Lnom(dB) 97.45
rmse Z(%) 4.35
rmse Hx(%) 2.25
Sd(cm2) 213.82
SPL (db/1Wm) 97.45
Xmax Single Way Total (mm) 1.85
