Bass Face DB2.2 v3 1240w Verified RMS 2-channel Car Amplifier
Τιμή πώλησης 475,00 €
Εκπτωση
(περιέχει ΦΠΑ)91,94 €
Τιμή / λ.:


Preloader

Product description

Now shipping Version 3 of this product - DB2.2 is a power house 2 channel amplifier.
Boasting over 500W RMS per channel into 4Ohms. This amp is quite a leap from the DB2.1 with totally different heatsink body and a much larger form factor. The DB2.2 has been designed to fulfil the needs of our competition customers. The amp has been built with SQ in mind over SPL.
Although it develops extremely high power output, the electronics are all carefully selected and matched to give you an impressive 0.04% THD (Distortion) at full power on 4Ohm.
So even at extreme output levels, the sound will be very clear and tonally balanced.

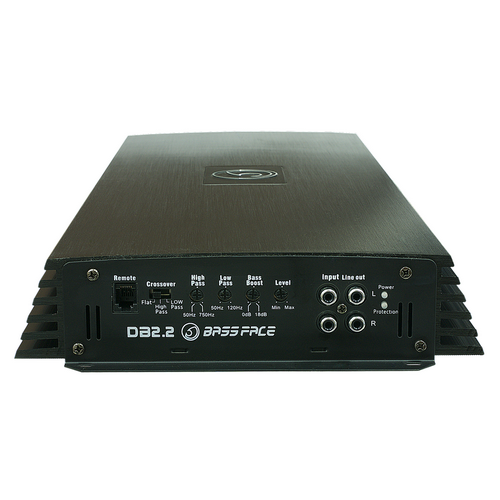

We included steep 24db/oct LPF as well as HPF as the amp is so big it lends itself well to powering SQ subwoofer set ups, where the big bad digital amps fall short of giving that warmth you get from Class A/B.
On that note, we also included a remote level control, as you would expect to get with a decent subwoofer amplifier. The internal power supply is overbuilt to enable the amp to work very hard without fatiguing other components and not drop below its rated output.
Now redesigned for 2018 the latest Version 3 units feature heavily revised circuitry and a larger heatsink for more efficiency and less heat produced.

Version History

Prototype – Developed specifically to compete in the Italian marketplace as a high output, high quality class A/B amp to power very big midbass installs. The DB2.2 prototype ticked all the boxes upon arrival so we put into production the V1.
V1 – Arriving to markets in 2014 the V1 performed well.
V2 – The V2 addressed an issue we were seeing with these getting very hot when driven hard by adding a good size fan on the underside to force cooling. As well as the fan we introduced improved crossover functionality for users who want to use them without extrnal processing. V2.1 - On sale from Q1 2017 V2.1 features improved capacitor selection. This is a marginal improvement only. There are no external features to distinguish V2.1 units from V2.0 units and there was some stock crossover, with the entire batch of 2.1 units selling out by the end of Q2 2017.

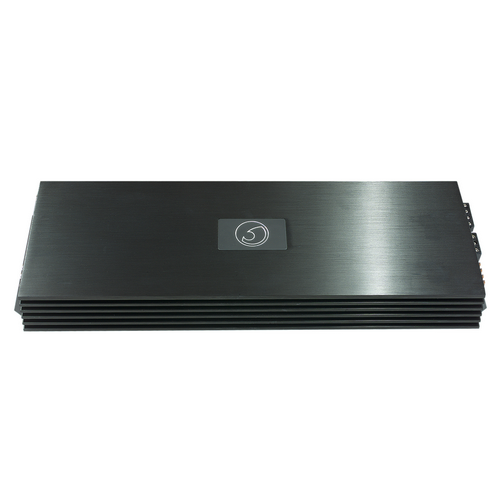

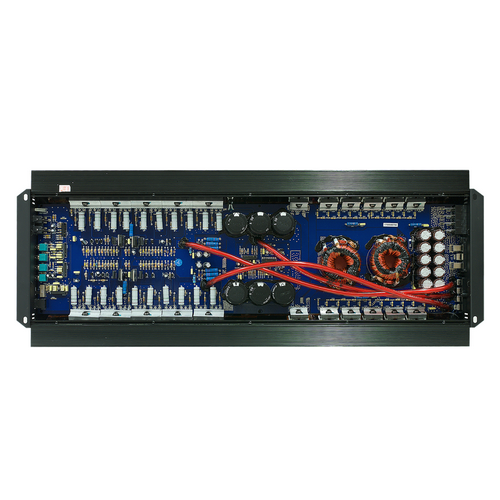

V3 - DB2.2 V3 uses a carefully redesigned board with more efficient output stage to reduce heat. V3 is easily distinguished with its 625mm length as compared to the previous generation which were 520mm long. Power and price remain basically the same - efficiency is up drastically along with a commensurate improvement in sound quality.

Amplifier Data

Genuine Useable RMS Power, 4Ohm (Watts), < 1%THD, 14v 450x2
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v 620x2
Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v 1240x1
Frequency Response (Hz) 10-25000
THD Continuous 4 Ohm 1Khz/100Hz (%) <0.04
Signal To Noise Ratio (db) >100
LPF (Hz) 50-120
HPF (Hz) 50-750
Bass Boost (Db) 0-18
Boost Frequency (Hz) 40
Audio Signal Input Voltage (V) 0.2-8
LPF Slope (Db/Oct) 24
HPF Slope (Db/Oct) 24
Amplifier Topology Class A/B

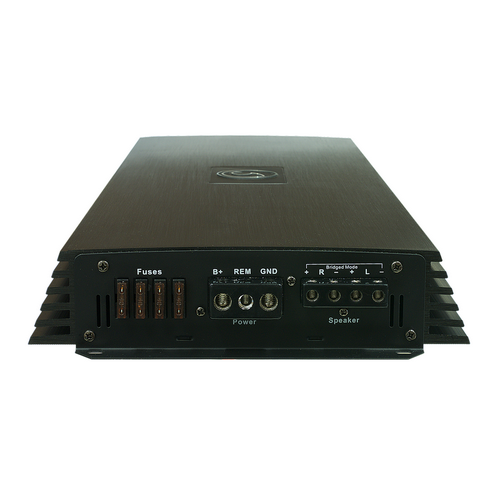

Fuse Rating (Amps) 4x40
Power Wire Input Gauge (AWG) 4
Recommended Wiring Kit and Accessories PWK4.1 RCA5.1
Minimum Recommend Final Load Per Channel (Ohms) 2
Channel Separation (Db) >60

Extended Amplifier Data

Verified RMS 14.4V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) 442@1%,100.8,(V3)
Verified RMS 14.4V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) 620@1%,167.5,(V3)
Verified RMS 14.4V Bridge 4Ohm (Watts)@(THD), (Amps), (Version) 1237@1%, 169.5,(V3)
Verified RMS 13.8V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) 411@1%,97.8,(V3)
Verified RMS 13.8V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) 554@1%,158.8,(V3)
Verified RMS 13.8V Bridge 4Ohm (Watts)@(THD), (Amps), (Version) 1102@1%,159.7,(V3)
Verified RMS 12.5V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) 339@1%,88.9,(V3)
Verified RMS 12.5V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) 457@1%,142.8,(V3)
Verified RMS 12.5V Bridge 4Ohm (Watts)@(THD), (Amps), (Version)
