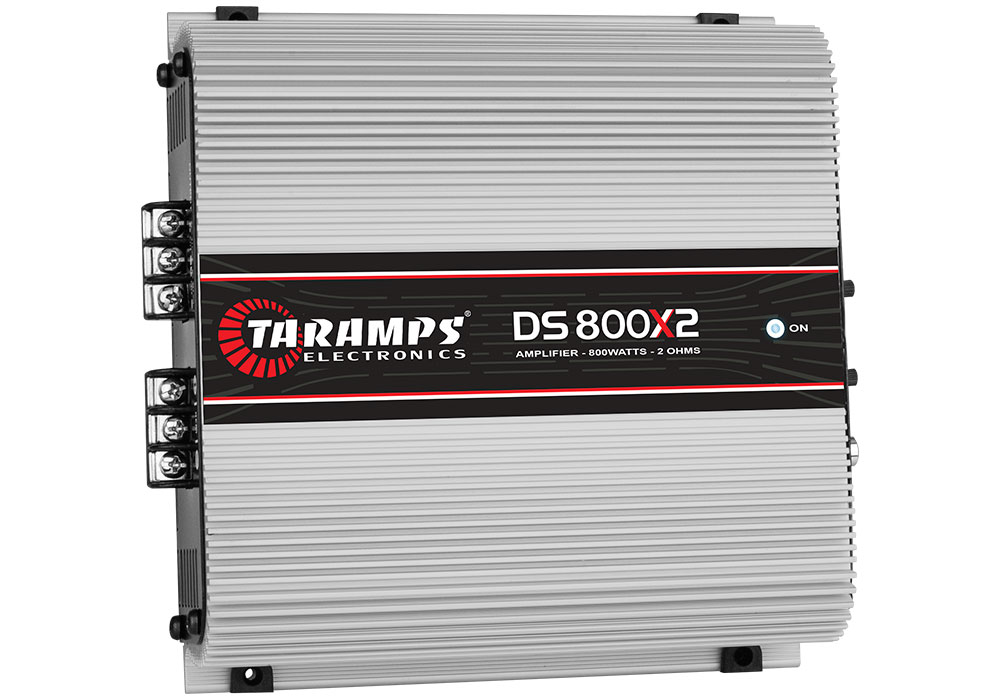

Taramps DS 800 X 2

DS-800x2-1000x700-1
DS-800x2-1000x700-2

Taramps DS 800 X 2 2κάναλος ενισχυτής 2x120w RMS
Τιμή πώλησης 250,00 €
Εκπτωση
(περιέχει ΦΠΑ)48,39 €
Τιμή / λ.:


Preloader
The DS 800 × 2 amplifier is developed with the highest technology and performance for automotive sound systems.
It is stereo, with maximum power of 800Watts RMS with impedance of 2 OHMS, and 2 channels of 400W RMS and 1 channel BRIDGE
with 800W in 4 OHMS. The DS 800 × 2 is FULL RANGE playing all frequencies in the right size for you.
Operation class (PT) Classe D
Number of Channels (PT) 02
Maximum power (PT) @ 12,6 VDC - 2 OHMS: 800W RMS (2 x 400W RMS)
@ 12,6 VDC - 4 OHMS: 500W RMS (2 x 250W RMS)
@ 12,6 VDC - 8 OHMS: 240W RMS (2 x 120W
Input Sensitivity (PT) 250mV
Signal to Noise Ratio (PT) >96dB
Frequency response (PT) 10Hz a 22KHz(-3dB)
Crossover high pass (HPF) (PT) 80Hz a 2,2KHz (-6dB/8ª) Variável
Crossover low pass (LPF) (PT) 80Hz(-12dB/8ª) Fixo
Efficiency (PT) 83%
Input Impedance (PT) 18K OHMS
Output Impedance (PT) 2 OHMS
Protection system (PT) Curto na Saída / Tensão de Alimentação Baixa
Min. Supply Voltage (PT) 9VDC
Maximum Power Supply Voltage (PT) 16VDC
Consumption at rest (PT) 0,85A
Maximum music consumption (PT) @12,6VDC 38A
Maximum consumption in sinusoidal signal (PT) @12,6VDC 77A
Dimensions (H x W x D) mm (PT) 184 x 54 x 190mm
Weight (PT) 1,38Kg
