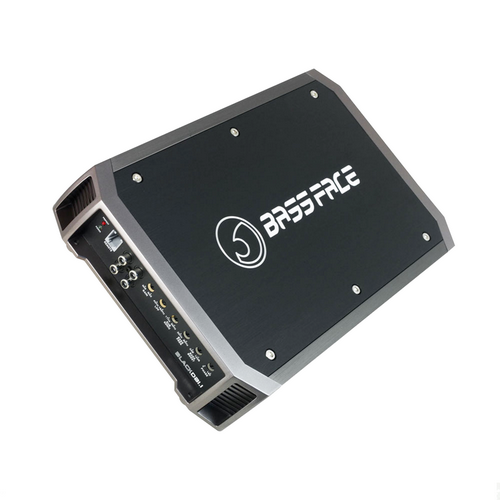

Bass Face BLACKDB1.1
Περιγραφή
Χαρακτηριστικά:
- 3000 Max Power
- 1310 RMS Power
- 600 RMS 4 Ohm
- 960 RMS 2 Ohm
- 1310 RMS 1 Ohm
- High Grade Class-D Architecture
- Line Output For Daisy Chaining
- Superior Sonic Integrity
- Silver Plated Terminals
- 1 Ohm Stable Operation
- Thermal & Short Circuit Protection
- Variable Subsonic Filter
- Variable frequency bass boost
- Phase Control 0° - 180°
Λεπτομέρειες:
- Amplifier Frequency Response (Hz) : 10-180
- Amplifier THD Continous 4 Ohm 1Khz/100Hz (%) : <0.03
- Amplifier Bass Boost (Db) : 0-12
- Amplifier Boost Frequency (Hz) : 30-80
- Amplifier Subsonic Filter (Hz) : 17-40
- Amplifier Audio Signal Input Voltage (V) : 0.2-6
- Amplifier LPF Slope (Db/Oct) : 12
- Amplifier HPF Slope (Db/Oct) : 12
- Amplifier Subsonic Filter Slope (Db/Oct) : 12
- Amplifier Topology : Class D
- Amplifier Fuse Rating (Amps) : 140
- Amplifier Power Wire Input Gauge (AWG) : 4
- Recommended Wiring Kit and Accessories : PWK4.1 RCA5.1
- Minimum Recommend Final Load Per Channel (Ohms) : 1
- Amplifier Input Impedence (KOhms) : >100
Extended Amplifier Data
| Verified RMS 14.4V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) | 591@1%, 49 (V1) |
| Verified RMS 14.4V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) | 960@1%, 86.7 (V1) |
| Verified RMS 14.4V Per Channel 1Ohm (Watts)@(THD), (Amps), (Version) | 1303@1%, 135.6 (V1) |
| Verified RMS 13.8V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) | 536@1%, 45.7 (V1) |
| Verified RMS 13.8V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) | 864@1%, 79.7 (V1) |
| Verified RMS 13.8V Per Channel 1Ohm (Watts)@(THD), (Amps), (Version) | 1212@1%, 133.1 (V1) |
| Verified RMS 12.5V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) | 438@1%, 41.6 (V1) |
| Verified RMS 12.5V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) | 702@1%, 73 (V1) |
| Verified RMS 12.5V Per Channel 1Ohm (Watts)@(THD), (Amps), (Version) | 997@1%, 119.9 (V1) |
