Bass Face DB1.6
Περιγραφή
Version History
Delivered Q3 2019 to allow powering of our fanstastic XPL woofers to the level they deserve.
Key Facts
| Product Category | Amplifiers |
| Version | 1 |
| Series | Hammer |
| Date Modified | 09/03/2020 |
| Barcode | 680044772219 |
| Production Status | Current |
| Product Height (mm) | 68 |
| Product Length (mm) | 690 |
| Product Width (mm) | 292 |
| Retail Carton L (mm) | 895 |
| Retail Carton W (mm) | 410 |
| Retail Carton H (mm) | 190 |
| Warranty (Months) | 12 |
| Sold As | Single |
Amplifier Data
| Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v | 1500x1 |
| Genuine Useable RMS Power, 2Ohm Bridge (Watts), < 1%THD, 14v | 2800x1 |
| Genuine Useable RMS Power, 1Ohm Bridge (Watts), < 1%THD, 14v | 5500x1 |
| Frequency Response (Hz) | 10-250 |
| THD Continuous 4 Ohm 1Khz/100Hz (%) | <0.1 |
| Signal To Noise Ratio (db) | >97 |
| LPF (Hz) | 35-250 |
| Bass Boost (Db) | 0-9 |
| Boost Frequency (Hz) | 50 |
| Subsonic Filter (Hz) | 10-50 |
| Audio Signal Input Voltage (V) | 0.2-6 |
| LPF Slope (Db/Oct) | 12 |
| Subsonic Filter Slope (Db/Oct) | 12 |
| Amplifier Topology | Class D |
| Amplifier Strappable? Not Recommended - No Warranty | 1Ohm |
| Fuse Rating (Amps) | USE EXTERNAL |
| Power Wire Input Gauge (AWG) | 0(x3) |
| Recommended Wiring Kit and Accessories | PWK0.1(x3) |
| Minimum Recommend Final Load Per Channel (Ohms) | 1 |
Technical Highlights
- Big Version Of Our Contest Winning Mono Amplifier
- Incredible Power - Fantastic Value Per Watt

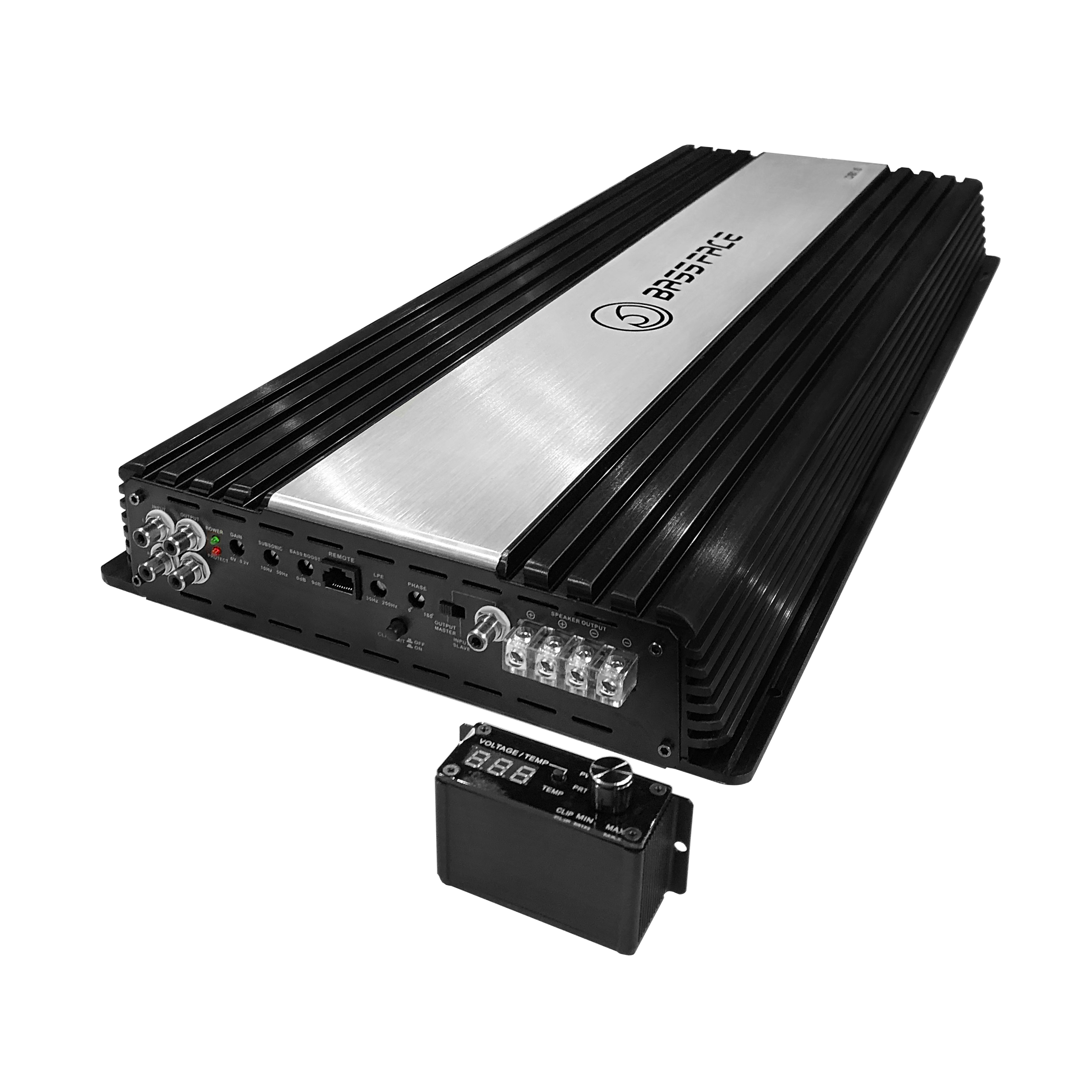

- Remote control with voltage display
- Highly Efficient Class D Topology
- Load Optimised for Transient Stability at Low Impedance's
- T.D.O.S. Amplifier Protection Circuitry
- O.P.S. Oversized Power Supply
- Up To 6V Ready Pre Amp Input Stage
- Low THD Audiophile Components
- Variable Phase 0-180 Degrees
- High Density Cast Aluminium Heatsink Body
- Thermally Efficient Heatsink Coating
- Variable Subsonic Filter 10-50Hz
- Variable Bass Boost 0-9db
- Variable Low Pass Crossover 35-250Hz
- Clip Limit Control
- 16V stable power inputs
