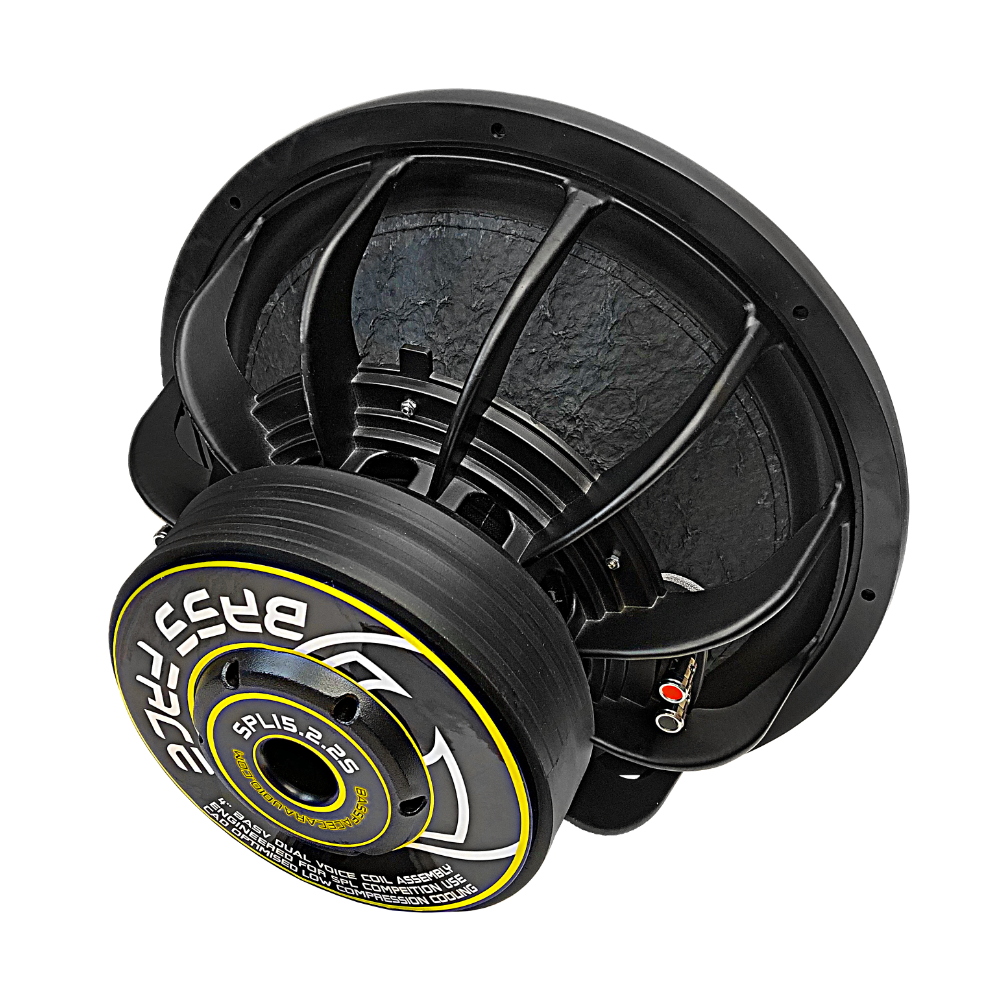

Bass Face SPL15.2S D2
Περιγραφή
Product description
Now shipping is the "S" version of this subwooofer -
The SPL15.2 has undergone significant development this last year - the latest model still features a choice of either 4+4 or 2+2 DVC coil but adds additional excursion and a host of other big changes over the outgoing model.
Offering improved double spider design with awesome woven in tinsel leads, better cooling, and all machine glued construction.
SPL 15.2S brings extreme, rebuildable 15 inch performance to an affordable price point.
- A large treated foam surround affords the cone excellent excursion with great linear stability throughout the whole stroke, combined with the new double spider to allow extremely tight cone control. This keeps the moving parts from distorting under the extreme loads expected.
- The basket, like the SPL12.2, is a cast aluminium multi arm design that minimises load on the rear of the cone - the low resonance and extreme rigidity further minimise distortion as the basket can not flex.
- The new magnets are double stacked super high density ceramic units rated at Y35 for a more active field in the air gap.
- The T yoke assembly at the back of the sub is “In & Out” vented – this means it has a ring of smaller cooling holes outside of the voice coil in addition to the standard large central vent inside the voice coil. This drastically reduces heat generation and unwanted compression.
Absolutely ideal for general use this is a versatile woofer that will produce tremendous SPL and keep up with complex SQ passages - its the Swiss Army Knife of 15 inch woofers! Like the smaller SPL12.2S we believe that this the best subwoofer for the price that money can buy.
S model gains carbon fibre dustcap and yellow stitching with further revisions to spider construction and geometry.
This is the 2+2 Ohm version.
Technical Highlights
- Carbon Fibre Dustcap
- Extreme Duty Adhesives
- Recommended Box - Ported 3.5 Cubic Feet Tuned to 35Hz
- Super High Density Double Stacked Y35 Ceramic Magnets
- Twin spider design for more power handling
- Extreme Duty Non Pressed Paper Cone
- Dual 2 Ohm BASV High TemPerature Voice Coils
- CAD Optimised Low Compression VC Cooling System
- Cast Aluminium Basket
- Treated Oversize Double Stitched Foam Surround
Speaker Data
| Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) | 4200 |
| Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) | 2100 |
| Overall Diameter (mm) | 400 |
| Magnet Diameter (mm) (Including Magnet Protector Where Applicable) | 200 |
| Installation Cutout Diameter (mm) | 360 |
| Overall Depth (mm) | 220 |
| Mounting Depth (mm) | 190 |
| Front Protrusion From Mounting Plane (mm) | 30 |
| Impedance (Ohm) (Nominal) | 2+2 |
| Sensitivity (db/1Wm) | 86 |
| Recommended Cable | PSC10.1 |
| Voice Coil Diameter (mm) | 75 |
