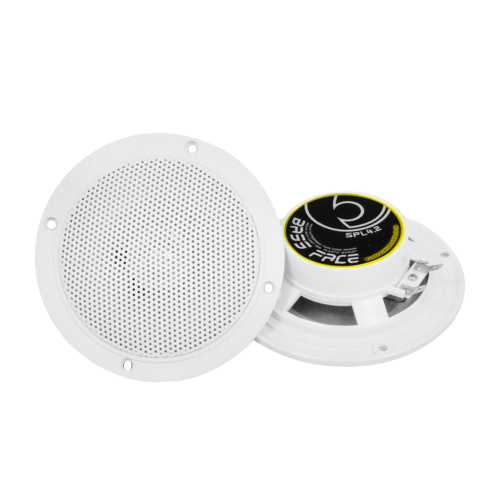

This Marine Ready speaker kit is an all round top performer featuring one piece waterproof dual concentric cones to cover the full frequency spectrum from sparkling highs to rounded mids – while staying lightweight and water proof using its rustproof ABS Basket design. Perfect for in wall cabin fitment on boats or in ceiling fitment in high moisture environments such as bathrooms and kitchens. Simple and attractive lines in the aesthetics make these easy to match to almost all interiors. Shallow mounting depth gives the flexibility for installation in tight spaces. The integrated grills can be sanded, primed and painted (using appropriate products) to match any interior colour scheme. Waterproof, durable, slim fit full range speakers, finished in white to match the on boat environment. Perfect for boats, yachts, bathrooms and hot tubs!
| Product Category |
Waterproof Speakers |
| Version |
1 |
| Series |
Marine |
| Barcode |
617529407243 |
| Production Status |
Current |
| Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) |
620 |
| Complete Product Pack Weight (g) |
755 |
| Retail Carton L (mm) |
140 |
| Retail Carton W (mm) |
140 |
| Retail Carton H (mm) |
115 |
| Weatherproof Rating |
IP65 |
| Warranty (Months) |
12 |
| Sold As |
Pair |
| Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) |
100 |
| Speaker Power Handling RMS (Watts) (One Speaker, Using Appropriate Crossover) |
50 |
| Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 1%THD) |
40 |
| Overall Diameter With Grilles (mm) |
130 |
| Overall Diameter (mm) |
130 |
| Mounting Hole PCD (mm) |
114.5 |
| Magnet Diameter (mm) (Including Magnet Protector Where Applicable) |
65 |
| Installation Cutout Diameter (mm) |
95 |
| Overall Depth (mm) |
45 |
| Mounting Depth (mm) |
30 |
| Front Protrusion From Mounting Plane (mm) |
15 |
| System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) |
70-18000 |
| Impedance (Ohm) (Nominal) |
4 |
| Sensitivity (db/1Wm) |
97 |
| Recommended Cable |
PSC18.1 |
| Full Speaker System Recommended Peak Power Input (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) |
200 |
| Full Speaker System Power Handling RMS (Watts) (Using Pair/Full Set Of Speakers Not Necessarily Included & Appropriate Crossover) |
100 |
- Completely Waterproof Twin Cone Design
- For Marine, Domestic and Specialist Automotive Applications
- Rigid & Durable Cast ABS Basket
- Slim Mount Integrated Grill
- Lightweight Polypropylene Cone
- Specially Treated Cloth Edge Surround
- Mounting screw hole diameter 5mm. Countersink depth minimum 3mm. Countersink head diameter 8mm
